ICF-35

ICF-35; Sony Corporation; (ID = 749875) Radio ICF-35; Sony Corporation; (ID = 1773726) Radio
ICF-35; Sony Corporation; (ID = 749876) Radio ICF-35; Sony Corporation; (ID = 1604646) Radio
ICF-35; Sony Corporation; (ID = 1604647) Radio ICF-35; Sony Corporation; (ID = 1604648) Radio
ICF-35; Sony Corporation; (ID = 1773727) Radio ICF-35; Sony Corporation; (ID = 1773728) Radio
ICF-35; Sony Corporation; (ID = 2482425) Radio ICF-35; Sony Corporation; (ID = 2482426) Radio
Use red slider bar for more.
ICF-35; Sony Corporation; (ID = 749875) Radio
Sony Corporation;: ICF-35 [Radio] ID = 749875 933x619
Select picture or schematic to display from thumbnails on the right and click for download.
For model ICF-35, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details

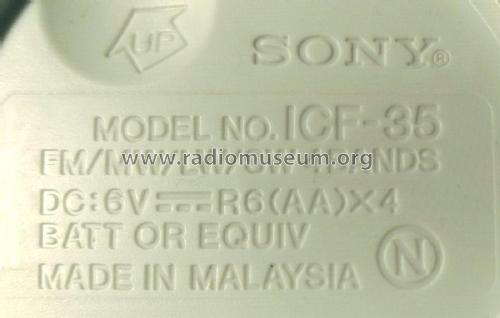

Power type and voltage Batteries / addl. power jack / 4 × 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: ICF-35 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 106 x 35 mm / 9.1 x 4.2 x 1.4 inch
Notes MW band shows UK stations. Has fine tuning dial on side. Hi/Lo tone switch. Local/distant switch.
Same model is available with european continent stations listed on mw band scale, also several colors available.

Model page created by Frank Leferink. See "Data change" for further contributors.
