ICF-350W

ICF-350W; Sony Corporation; (ID = 378611) Radio

ICF-350W; Sony Corporation; (ID = 378612) Radio

ICF-350W; Sony Corporation; (ID = 378613) Radio

ICF-350W; Sony Corporation; (ID = 378614) Radio

ICF-350W; Sony Corporation; (ID = 378615) Radio

ICF-350W; Sony Corporation; (ID = 378616) Radio
ICF-350W; Sony Corporation; (ID = 2253706) Radio ICF-350W; Sony Corporation; (ID = 2253707) Radio
ICF-350W; Sony Corporation; (ID = 2253708) Radio ICF-350W; Sony Corporation; (ID = 2253709) Radio
ICF-350W; Sony Corporation; (ID = 178822) Radio ICF-350W; Sony Corporation; (ID = 210106) Radio
ICF-350W; Sony Corporation; (ID = 1604663) Radio ICF-350W; Sony Corporation; (ID = 773959) Radio
ICF-350W; Sony Corporation; (ID = 773960) Radio ICF-350W; Sony Corporation; (ID = 773961) Radio
Use red slider bar for more.
ICF-350W; Sony Corporation; (ID = 2253706) Radio
Sony Corporation;: ICF-350W [Radio] ID = 2253706 1024x915
Select picture or schematic to display from thumbnails on the right and click for download.
For model ICF-350W, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1986 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 2 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
Power out 0.1 W (undistorted)
from Radiomuseum.org Model: ICF-350W - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 156 x 77.5 x 35.5 mm / 6.1 x 3.1 x 1.4 inch
Notes

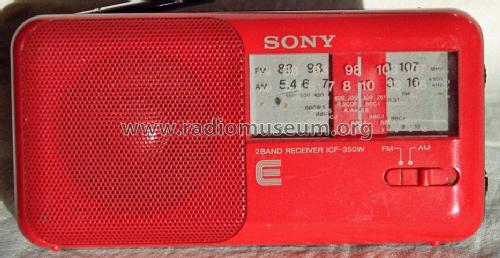

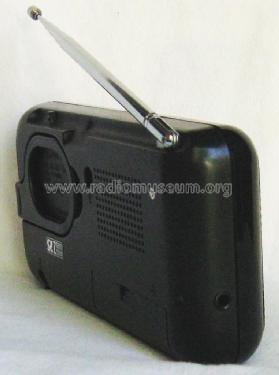

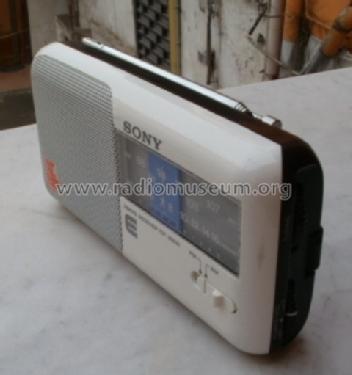

4 versions: white, black, red and blue.
Similar to ICF-350L but AM: 531-1602 kHz.
Built for European countries and the UK. Made in Malaysia.

Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Howard Craven. See "Data change" for further contributors.
