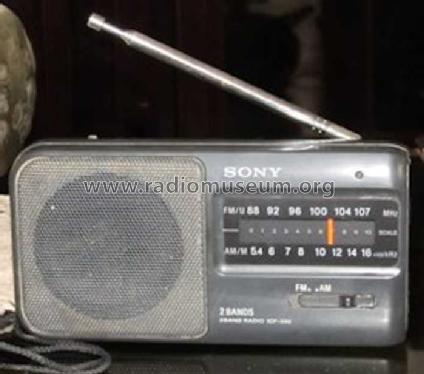

ICF-390

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1993

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 198567

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

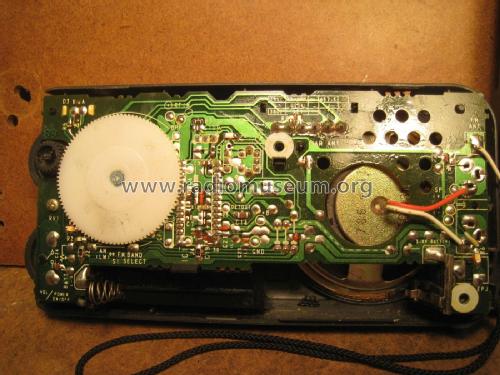

• Number of Transistors

• Semiconductors
• CXA1019S

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

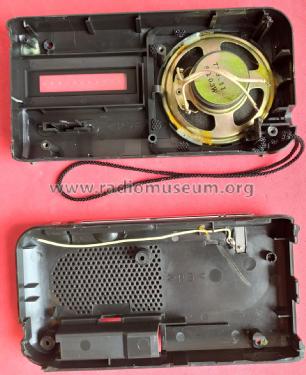

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.1 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: ICF-390 - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 158 x 81.5 x 37.5 mm / 6.2 x 3.2 x 1.5 inch

• Notes

• Made in various cabinet colors.

  ICF-390 is almost same as ICF-380.

  There are at least seven variants grouped into three types:

  The US and Canadian Models (87.6-108MHz FM, 530-1710KHz AM);

  The AEP, German, UK, European Models (87.6-107.5MHz FM, 531-1602KHz AM);

  The East European Model (65-108MHz FM, 531-1602KHz AM).

  Power output: 100mW at 10% distortion.

  For specifications and service, use the Sony ICF-390 Service Manual that contains only the points which differ from the Sony ICF-380. Please refer to ICF-380 Service Manual for information on schematics, PCB layout  and adjustments.



• Net weight (2.2 lb = 1 kg)
• 0.235 kg / 0 lb 8.3 oz (0.518 lb)

• Author
• Model page created by Antonio Martins-Pais. See "Data change" for further contributors.
