FM/SW/MW/LW Multi Band Receiver ICF-6700L

FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 89570) Radio FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 89571) Radio
FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 329136) Radio FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 661681) Radio
FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 661682) Radio FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 661683) Radio
FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 661685) Radio FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 661689) Radio
FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 661690) Radio FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 661749) Radio
Use red slider bar for more.
FM/SW/MW/LW Multi Band Receiver ICF-6700L; Sony Corporation; (ID = 89570) Radio
Sony Corporation;: FM/SW/MW/LW Multi Band Receiver ICF-6700L [Radio] ID = 89570 933x504
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/SW/MW/LW Multi Band Receiver ICF-6700L, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1978–1980 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 47:
Main principle Superhet, double/triple conversion; ZF/IF 10700/455 kHz
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110-240/6 x 1.5 (D) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 1 W (unknown quality)
from Radiomuseum.org Model: FM/SW/MW/LW Multi Band Receiver ICF-6700L - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 460 x 190 x 235 mm / 18.1 x 7.5 x 9.3 inch

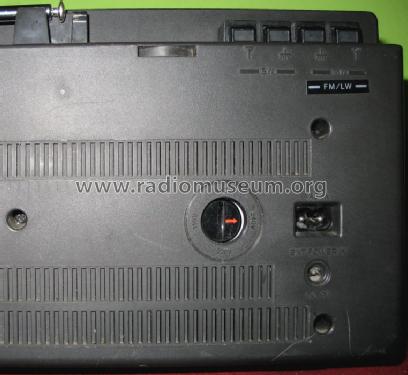

Notes AM coverage 150-400, 530-1605, 1600-10000, 11500-20000, 20000-29500 kHz; AM, USB/LSB, FM(VHF); preselector; very similar to the ICF-6700W , switchable LW/MW band. Ext.power jack: DC 9 V.
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)
Collectors' prices

Model page created by Martin Bösch. See "Data change" for further contributors.
