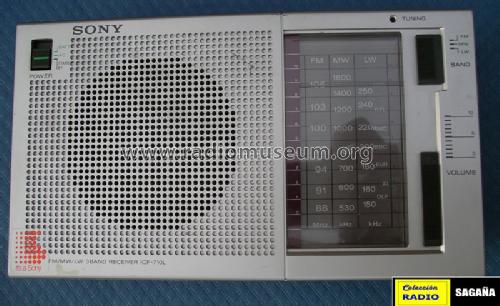

ICF-710L

ICF-710L; Sony Corporation; (ID = 2284081) Radio ICF-710L; Sony Corporation; (ID = 2284082) Radio
ICF-710L; Sony Corporation; (ID = 2284084) Radio ICF-710L; Sony Corporation; (ID = 2284083) Radio
ICF-710L; Sony Corporation; (ID = 1150076) Radio ICF-710L; Sony Corporation; (ID = 2162327) Radio
ICF-710L; Sony Corporation; (ID = 1150078) Radio ICF-710L; Sony Corporation; (ID = 1497741) Radio
ICF-710L; Sony Corporation; (ID = 1497742) Radio ICF-710L; Sony Corporation; (ID = 1497743) Radio
Use red slider bar for more.
ICF-710L; Sony Corporation; (ID = 2284081) Radio
Sony Corporation;: ICF-710L [Radio] ID = 2284081 1024x844
Select picture or schematic to display from thumbnails on the right and click for download.
For model ICF-710L, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1985 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.2 cm = 3.6 inch
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: ICF-710L - Sony Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 229 x 129 x 59 mm / 9 x 5.1 x 2.3 inch
Net weight (2.2 lb = 1 kg) 0.840 kg / 1 lb 13.6 oz (1.85 lb)
Literature/Schematics (1) -- Original prospect or advert

Model page created by Salvador Galan-Ocaña. See "Data change" for further contributors.
