FM/SW/MW/LW 4 Band Radio ICF-903L

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074641) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074642) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074643) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074645) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074646) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074647) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074648) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074649) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074650) Radio

FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074651) Radio
FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074658) Radio FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 2268917) Radio
FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 2268918) Radio FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 2268919) Radio
FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 2562417) Radio
Use red slider bar for more.
FM/SW/MW/LW 4 Band Radio ICF-903L; Sony Corporation; (ID = 1074658) Radio
Sony Corporation;: FM/SW/MW/LW 4 Band Radio ICF-903L [Radio] ID = 1074658 933x746
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/SW/MW/LW 4 Band Radio ICF-903L, Sony Corporation; Tokyo:

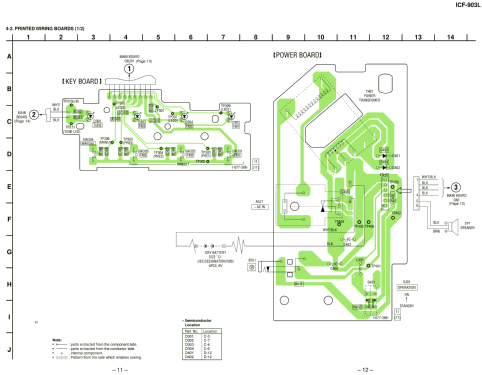

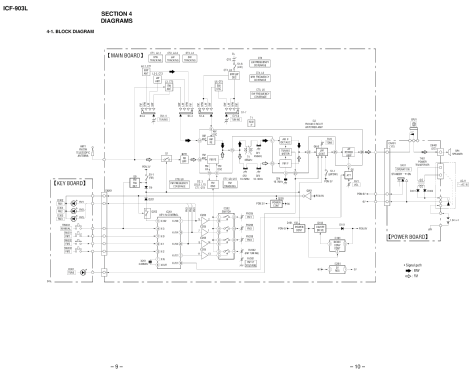

from Service Manual

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 2000 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present. CXA1019S
Main principle ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 50Hz, 220-230 / AA: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.2 cm = 4 inch
Power out 0.43 W (unknown quality)
from Radiomuseum.org Model: FM/SW/MW/LW 4 Band Radio ICF-903L - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 265 x 137 x 69 mm / 10.4 x 5.4 x 2.7 inch
Notes

Sony ICF-903L hat 3 Stationstasten zur Vorwahl von UKW/FM-Sendern. Die Einstellregler liegen hinter einer Abdeckung an der Rückseite. Die 4. Taste schaltet auf Handabstimmung um.

Net weight (2.2 lb = 1 kg) 1.081 kg / 2 lb 6.1 oz (2.381 lb)
Mentioned in - - Manufacturers Literature (Service-Manual)

Model page created by Hans Völkening. See "Data change" for further contributors.
