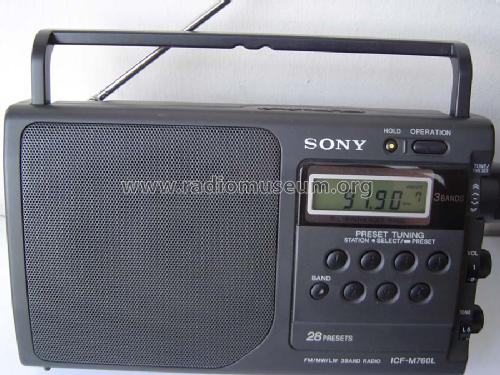

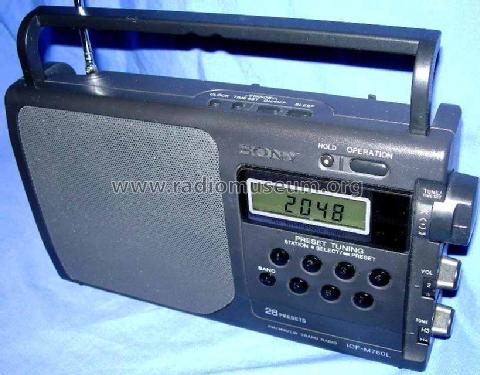

ICF-M760L
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1997
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 92466
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 50 Hz, 220-230 / R20: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
- Power out
- 0.4 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: ICF-M760L - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 270 x 153 x 69 mm / 10.6 x 6 x 2.7 inch
- Notes
-
28 presets, clock, standby, sleep.
Frequency ranges:
- FM 87.5 -108 MHz (0.05 or 0.1 MHz steps)
- MW 631 - 1602 kHz (9 kHz steps)
- LW 153 - 279 kHz (9 kHz steps)
AEP and UK model.
- Net weight (2.2 lb = 1 kg)
- 1.420 kg / 3 lb 2 oz (3.128 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Ervé Leclercq. See "Data change" for further contributors.
