• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1996 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 164512

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• CXA1019S

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AA: 2 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.2 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

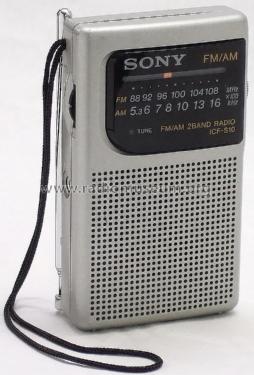

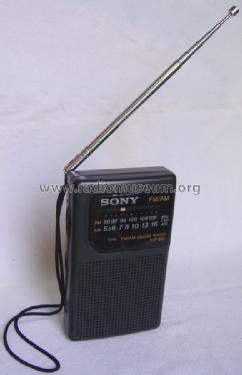

• Model: FM/AM Radio ICF-S10 - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 70 x 120 x 30 mm / 2.8 x 4.7 x 1.2 inch

• Notes
• AM/FM-2 Band Radio, schwenkbare Teleskopantenne 50 cm, Ferritantenne 5 cm, Kopfhöreranschluß über 3,5 mm Klinkenbuchse

• Net weight (2.2 lb = 1 kg)
• 0.160 kg / 0 lb 5.6 oz (0.352 lb)

• Mentioned in
• - - Manufacturers Literature (Service-Manual)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
