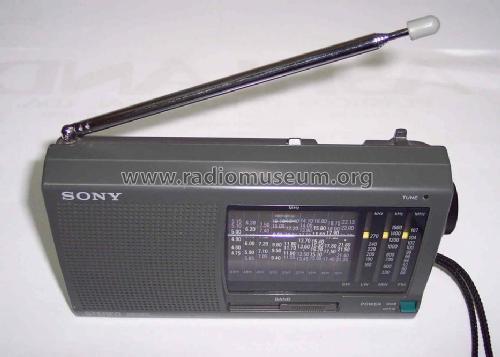

Stereo 12 Bands ICF-SW11

Sony Corporation; Tokyo

  • Year
  • 1999
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 121055

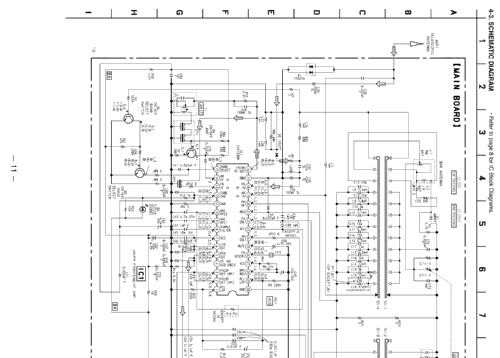

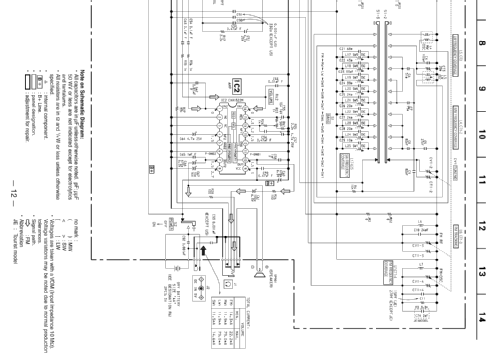

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1.5 / DC 3 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch
  • Power out
  • 0.14 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo 12 Bands ICF-SW11 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 162 x 93.8 x 34.8 mm / 6.4 x 3.7 x 1.4 inch
  • Notes
  • LW, MW, SW 9 bands & FM. FM stereo with earphones. FM: 87.5-108 MHz / LW:141-290 kHz MW: 525-1620 kHz SW1: 4.750-5.060 MHz SW2: 5.900-6.200 MHz SW3: 7.100-7.350 MHz SW4: 9.400-9.990 MHz SW5: 11.600-12.100 MHz SW6: 13.570-13.870 MHz SW7: 15.100-15.800 MHz SW8: 17.480-17.900 MHz SW9: 21.450-21.750 MHz
  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Mentioned in
  • - - Data from my own collection
