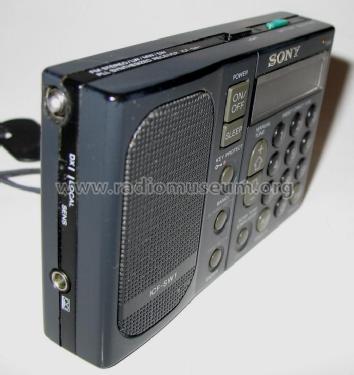

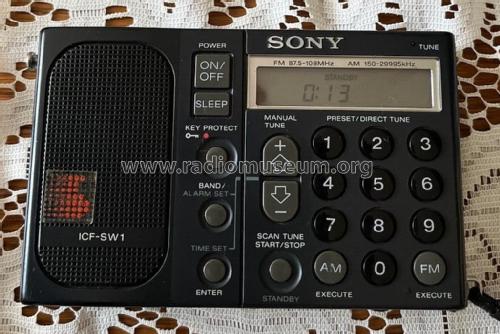

FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2

FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847859) Radio FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847861) Radio
FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847862) Radio FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847863) Radio
FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847865) Radio FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847866) Radio
FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847894) Radio FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847935) Radio
FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 2089530) Radio
Use red slider bar for more.
FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2; Sony Corporation; (ID = 847859) Radio
Sony Corporation;: FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2 [Radio] ID = 847859 933x626
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2, Sony Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1987–1993 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 2 × 1,5 / 3 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FM Stereo / LW / MW / SW Receiver ICF-SW1 - Type 2 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 120 x 71 x 23 mm / 4.7 x 2.8 x 0.9 inch
Notes Type 2: MW: 530-1610 (selector 10 kHz) other 531-1611 kHz (selector 9 kHz), LW: 150-528 kHz, SW: 1,615-26,100 kHz. FM: 87,5-108 MHz.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Price in first year of sale 698.00 DM

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
