For model ICF-SW30, Sony Corporation; Tokyo:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1993–1996 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 39:
Main principle Superhet, double/triple conversion; ZF/IF 450/10700 kHz
Wave bands Broadcast, more than 2 SW bands plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 3 x 1,5 / 4,5 DC Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
Power out 0.24 W (unknown quality)
from Radiomuseum.org Model: ICF-SW30 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 169 x 112 x 35 mm / 6.7 x 4.4 x 1.4 inch

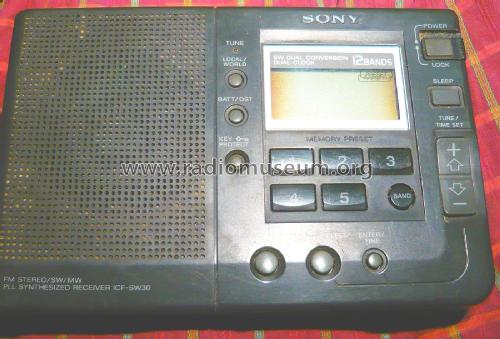

Notes Sony ICF-SW30 FM Stereo/SW/MW/(LW) PLL Synthesized Receiver
  • Frequency range:
    MW, FM and SW from 3700 kHz to 21950 kHz in 10 Bands
    • French model (ICF-SW30L):
      According to the Service-Manual there exists a special version for the french market with additional coverage of LW (153-279 kHz)
  • Clock / Timer
  • Tuning only by up/down keys, no direct frequency entry

RF-IC: CX20111; AF-IC: CXA1522M.

Net weight (2.2 lb = 1 kg) 0.448 kg / 0 lb 15.8 oz (0.987 lb)
Price in first year of sale 148.00 DM
Literature/Schematics (1) -- Original-techn. papers. (Service-Manual)

Model page created by Martin Bösch. See "Data change" for further contributors.
