ICF-SW7600GR

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 2001

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 166052

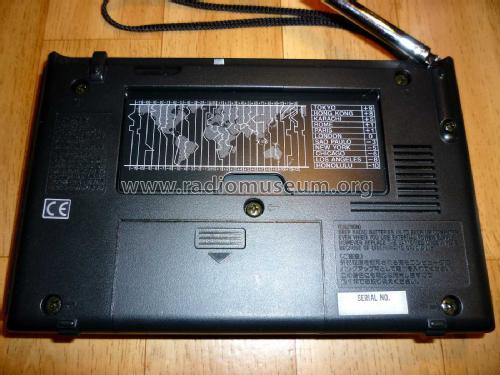

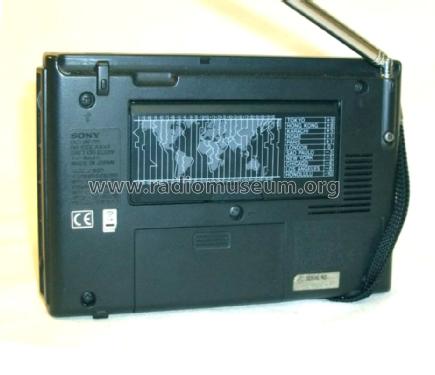

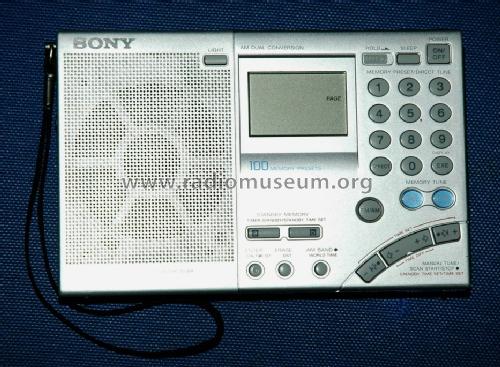

• Picture

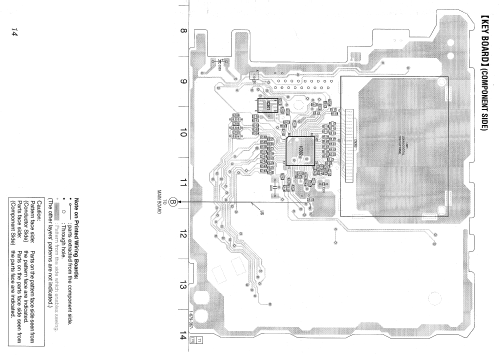

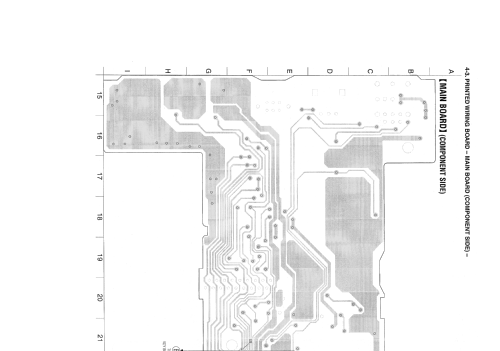

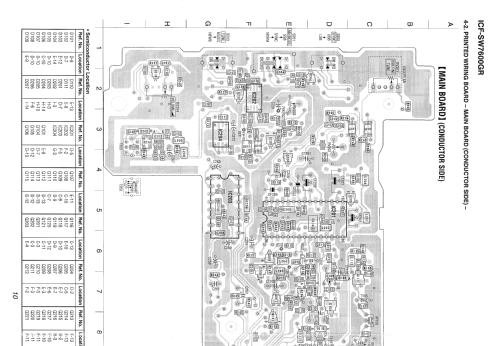

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 450 kHz; 2 AF stage(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / AA: 4 x 1.5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 0.38 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: ICF-SW7600GR - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 185 x 118 x 30 mm / 7.3 x 4.6 x 1.2 inch

• Notes

• Coverage:

  FM:

  • 76 ...108 MHz
  • 87.5 ... 108 MHz (Saudi Arabia and Malaysia)

  SW:

  • 1621 ... 29999 kHz
  • 2250 ... 26100 kHz (Saudi Arabia and Malaysia)

  MW:

  • 530 ... 1620 kHz

  LW:

  • 150 ... 529 kHz
  • 150 ... 285 kHz (Saudi Arabia and Malaysia)


  Given weight without batteries.

• Net weight (2.2 lb = 1 kg)
• 0.536 kg / 1 lb 2.9 oz (1.181 lb)

• Price in first year of sale
• 199.00 €

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)

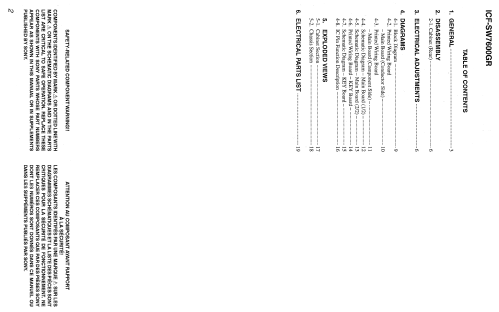

• Service Manual und Benutzer Manual

• Author
• Model page created by Toza Djonin. See "Data change" for further contributors.
