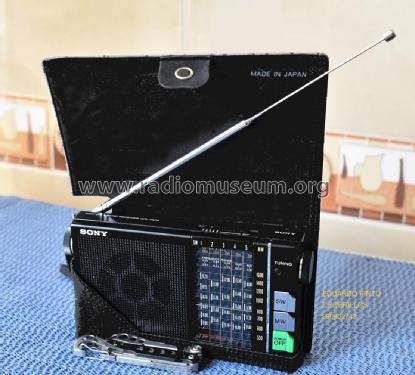

MW/SW 6 Band Receiver ICR-4800

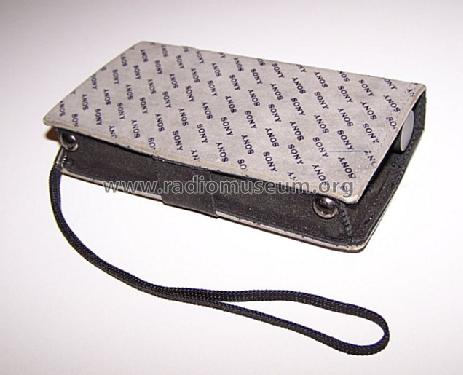

MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 351867) Radio MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 351868) Radio

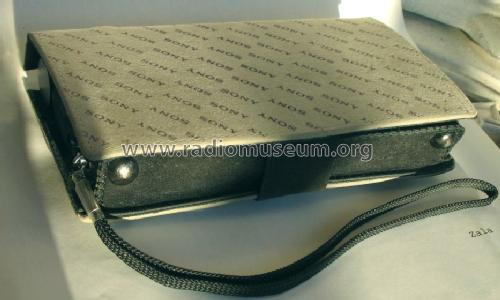

MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 1139207) Radio MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 1139208) Radio
MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 1139210) Radio MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 1139212) Radio
MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 1139213) Radio MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 1139214) Radio
MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 2224679) Radio MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 2224680) Radio
Use red slider bar for more.
MW/SW 6 Band Receiver ICR-4800; Sony Corporation; (ID = 351867) Radio
Sony Corporation;: MW/SW 6 Band Receiver ICR-4800 [Radio] ID = 351867 702x503
Select picture or schematic to display from thumbnails on the right and click for download.
For model MW/SW 6 Band Receiver ICR-4800, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / 2 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: MW/SW 6 Band Receiver ICR-4800 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 133.5 x 74 x 22 mm / 5.3 x 2.9 x 0.9 inch
Notes

Covers 49 - 16 m SW broadcast bands, AM only.
The first really small travel shortwave portable with analog dial.

With Earphone jack (mini jack) and telescopic antenna.

Net weight (2.2 lb = 1 kg) 0.225 kg / 0 lb 7.9 oz (0.496 lb)
Mentioned in Alles über die Sony Weltempfänger, R. Lichte

Model page created by Martin Bösch. See "Data change" for further contributors.
