Integrated Stereo Amplifier F211 TA-F211

Sony Corporation; Tokyo

  • Year
  • 1993 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 321990

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240; 220-230 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 60 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Integrated Stereo Amplifier F211 TA-F211 - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 135 x 315 mm / 16.9 x 5.3 x 12.4 inch
  • Notes

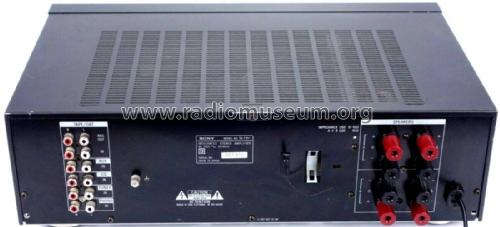

  • A hi-fi Super Legato Linear integrated stereo amplifier with power output of 30 watts per channel into 8 ohms. With a low-noise, high-gain equalizer pre-amplifier and a pure-complementary SEPP OCL power amplifier with all stages directly coupled. With a jack for Headphones, rotary Speaker switch (A + B, OFF, A, B), rotary Bass, Treble, Balance and Volume controls, push button switches for Tape/DAT Monitor, Loudness, rotary Input Selector switch (Aux, CD, Tuner, Phono), push button switch for Source Direct. On the back, RCA phono sockets for input Aux, CD, Tuner, Phono, for input/output Tape/DAT, and terminals for 2 pairs of loudspeakers (A, B).

    Specification
    Continuous RMS power output
    (both channels driven)

    20Hz - 20kHz, THD 0.05% 30W + 30W into 8Ω
    Total harmonic distortion (8Ω, 20Hz-20kHz) Less than 0.05% at 10 W output
    Intermodulation distortion Less than 0.05% at rated output
    Output
      REC OUT Voltage/impedance 150mV/1kohm
      SPEAKERS 8 - 16Ω (Germany 4 - 16Ω)
      HEADPHONES Low and high Impedance headphones
    Input Sensitivity/Impedance
      PHONO MM
     TUNER,CD,AUX,DAT/TAPE1,TAPE2
    2.0mV/50kΩ
    150mV/50kΩ
    S/N (weighting network, input level)
      PHONO MM 76dB (A, 5mV)
      TUNER,CD,AUX,DAT/TAPE1,TAPE2 96dB (150mV)
    Frequency response
      PHONO RIAA equalization curve ±0.5 dB
      TUNER,CD,AUX,DAT/TAPE1,TAPE2 7Hz-100kHz ±3dB
    Damping factor 40 (8Ω, 1kHz)

    Versions/Power requirements

    AEP Model  220V-230V AC 50/60 Hz
    UK Model 240V AC 50/60Hz
    Australian Model 240V AC 50/60Hz
    E Model 120V, 220V or 240V AC 50/60 Hz with voltage selector

    Power consumption: 80 watts

    Similar to the Sony TA-F242 Integrated Stereo Amplifier F242 which has higher power output.

  • Net weight (2.2 lb = 1 kg)
  • 6.2 kg / 13 lb 10.5 oz (13.656 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual TA-F211/F242 dated 1993.4)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
