KV-9000U

KV-9000U; Sony Corporation; (ID = 426112) Television
Use red slider bar for more.
KV-9000U; Sony Corporation; (ID = 426112) Television
Sony Corporation;: KV-9000U [Television] ID = 426112 198x302
Select picture or schematic to display from thumbnails on the right and click for download.
For model KV-9000U, Sony Corporation; Tokyo:
Original-Prospect

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1972 Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: KV-9000U - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 10.5 x 12.5 x 14 inch / 267 x 318 x 356 mm
Notes Sony KV-9000U;

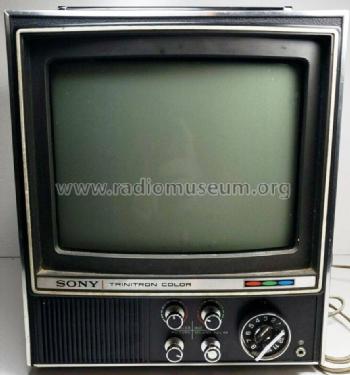

9 " Trinitron portable style NTSC color TV with US standard VHF-/UHF tuner, two telescopic antennas, earphone jack.
Collectors' prices
Source of data -- Original prospect or advert
