• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1976

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 133509

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

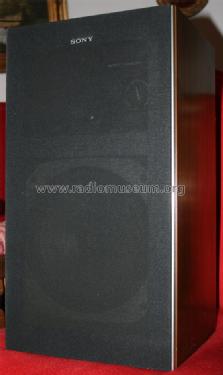

• Model: Lautsprecher-Box SS-3050 - Sony Corporation; Tokyo

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 315 x 580 x 290 mm / 12.4 x 22.8 x 11.4 inch

• Notes
• Volumen: 50 l,
  Frequenzbereich: 26-20000 Hz,
  Tiefton: Carbocon 25 cm
  Mittelton: Konus 6 cm
  Hochton: Konus 5 cm
  Resonanzfrequenz: 55 Hz
  Impedanz: 8 Ohm
  Sinus: 70 W

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
