Sony Corporation;: MD Walkman MiniDisc Portable Recorder MZ-1 [R-Player] ID = 2520868 1210x1013

Select picture or schematic to display from thumbnails on the right and click for download.

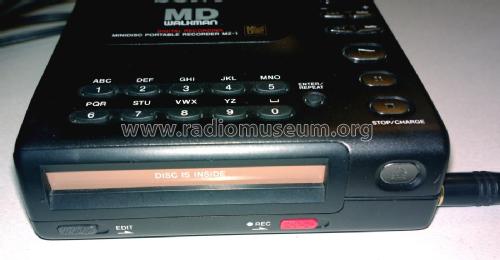

For model MD Walkman MiniDisc Portable Recorder MZ-1, Sony Corporation; Tokyo:
The digits on the 10 number keys are missing due to extensive usage.

Country:

Japan

Manufacturer / Brand:

Sony Corporation; Tokyo

Year: 1992

Category: Sound/Video Recorder and/or Player

Semiconductors (the count is only for transistors)

Semiconductors present.

Main principle	Audio-Amplification
Wave bands	- without
Details	Other Recorder/Player
Power type and voltage	Batteries / addl. power jack / BP-MZ1: 1×6 / 10,5 Volt
Loudspeaker	- For headphones or amp.
Power out
from Radiomuseum.org	Model: MD Walkman MiniDisc Portable Recorder MZ-1 - Sony Corporation; Tokyo
Material	Modern plastics (no Bakelite or Catalin)
Shape	Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD)	114 x 139 x 43 mm / 4.5 x 5.5 x 1.7 inch
Notes	The first Minidisc unit on the market. ATRAC 1. 10-second shock-resistant memory, 10 key direct track access. Shuffle, repeat, program play modes, auto-resume, backlit LCD display for disc name, track name, time. Bass boost. Track divide, combine, swap, erase. Disc and track (21 chars max) titling functions. Date and time memo. 1 hour continuous record on BP-MZ1 NiCad battery pack.
Net weight (2.2 lb = 1 kg)	0.690 kg / 1 lb 8.3 oz (1.52 lb)
Price in first year of sale	750.00 USD
Mentioned in	-- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
