Microcassette-Corder M-440V

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1991
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 303512

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage and/or dry batteries / 2 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
  • Power out
  • 0.15 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Microcassette-Corder M-440V - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 67.5 x 124 x 27 mm / 2.7 x 4.9 x 1.1 inch
  • Notes

  • 2 track 1 channel mono cassette recorder/player. Uses Microcassette tape (normal position type).

    • frequency response: 250 Hz - 4000 Hz (at 2.4cm position)
    • built-in microphone
    • VOR (Voice Operated Recording)
    • Auto Shut Off
    • tape speed switch (2.4 cm/1.2 cm)
    • VOR on/off switch
    • volume control
    • earphone jack

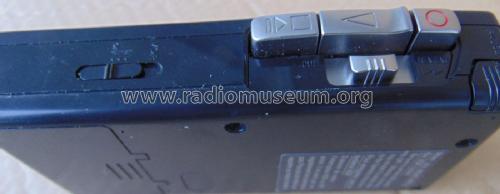

    • playback, record and stop/eject buttons
    • pause switch
    • CUE (fast forward) and REVIEW (rewind) control
    • 3 volt DC external power socket.



    • frequency response: 250 Hz  - 4000 Hz (2.4cm posizione)
    • microfono incorporato
    • VOR (Voice Operated Recording)
    • Auto Shut Off
    • commutatore tape speed (2.4 cm/1.2 cm)
    • commutatore VOR on/off
    • controllo volume
    • presa per cuffia
    • tasti play/stop/pause/ff.ww.rew/rec.
    • presa per alimentazione esterna 3 volt DC.

    Made in Japan.

  • Net weight (2.2 lb = 1 kg)
  • 0.180 kg / 0 lb 6.3 oz (0.396 lb)
  • Mentioned in
  • - - Manufacturers Literature (M-440V/550V/660V Service Manual dated 1991)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
