Microcassette Corder M-909

Sony Corporation; Tokyo

  • Year
  • 1990 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 250361

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Special Tape or Cassette-Format
  • Power type and voltage
  • Dry Batteries / 1 x 1,5 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 0.009 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Microcassette Corder M-909 - Sony Corporation; Tokyo
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 67.6 x 64.6 x 18.5 mm / 2.7 x 2.5 x 0.7 inch
  • Notes

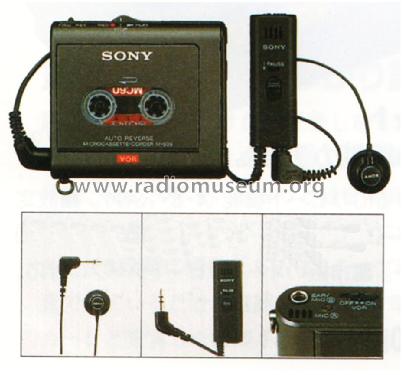

  • Sony Pocket Microcassette Corder Model M-909.
    2-track 1-channel monaural
    250 - 4000 Hz
    Remote Control Microphone (Sony ECM-J90S)
    Carrying Case, Handstrap

  • Net weight (2.2 lb = 1 kg)
  • 0.1 kg / 0 lb 3.5 oz (0.22 lb)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
