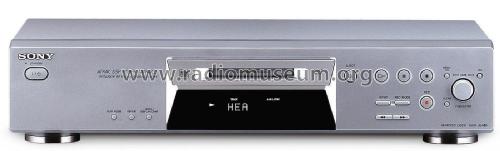

MiniDisc Recorder MDS-JE480

MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1819443) R-Player MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560761) R-Player
MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560760) R-Player MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560707) R-Player
MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560708) R-Player MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560754) R-Player
MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560756) R-Player MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560757) R-Player
MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560758) R-Player MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1560705) R-Player
Use red slider bar for more.
MiniDisc Recorder MDS-JE480; Sony Corporation; (ID = 1819443) R-Player
Sony Corporation;: MiniDisc Recorder MDS-JE480 [R-Player] ID = 1819443 1400x423
Select picture or schematic to display from thumbnails on the right and click for download.
For model MiniDisc Recorder MDS-JE480, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 2002 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Other Recorder/Player; Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220-230 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: MiniDisc Recorder MDS-JE480 - Sony Corporation; Tokyo
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 95 x 285 mm / 16.9 x 3.7 x 11.2 inch
Notes

Sony MiniDisc Recorder/Reproducer MDS-JE480

Frequency response: 5Hz - 20 KHz +/- 0,3 dB;  SNR > 96 dB.

Remote control: RM-D10E .


Letztes Sony MD Einstiegsgerät. Nur 1-Zeiliges Display. Kein Kopfhöreranschluß. Kein USB Anschluß. Kein Keyboard Anschluß. Kein digitaler Ausgang.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

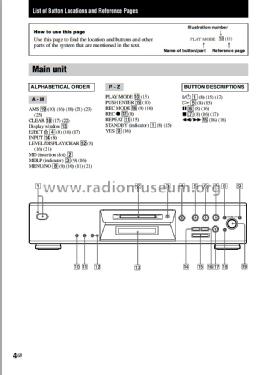

Mentioned in -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
