PLL Synthesized Radio ICF-C503

PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800380) Radio PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800381) Radio

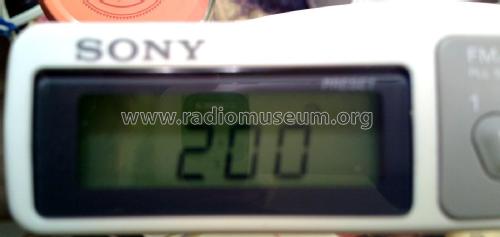

PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800382) Radio PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800383) Radio
PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800384) Radio PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800385) Radio
PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800386) Radio PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800387) Radio
PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800388) Radio PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800389) Radio
Use red slider bar for more.
PLL Synthesized Radio ICF-C503; Sony Corporation; (ID = 1800380) Radio
Sony Corporation;: PLL Synthesized Radio ICF-C503 [Radio] ID = 1800380 1400x967
Select picture or schematic to display from thumbnails on the right and click for download.
For model PLL Synthesized Radio ICF-C503, Sony Corporation; Tokyo:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1993 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220-230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: PLL Synthesized Radio ICF-C503 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 216 x 75 x 225 mm / 8.5 x 3 x 8.9 inch
Notes

Kitchen radio with LCD clock and timer for mounting under a shelf or cabinet.

2 × 5 preselect station.

Assembled in Malaysia.

Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
