• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1975 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 217527

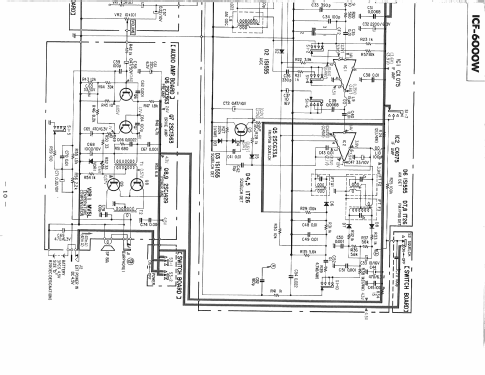

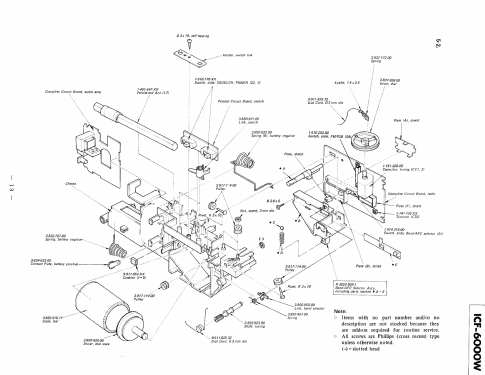

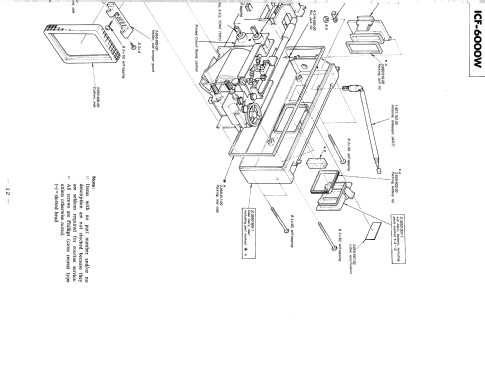

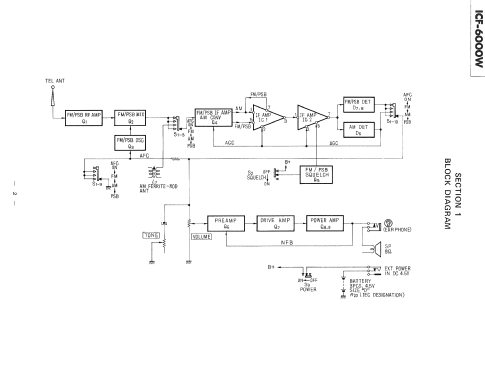

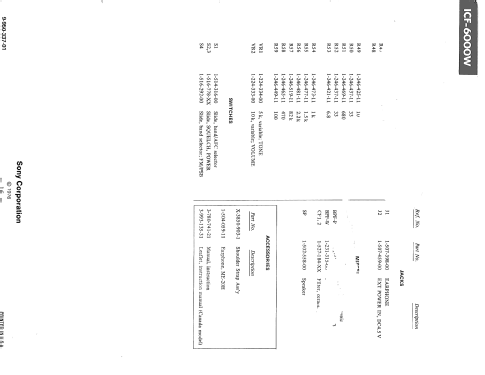

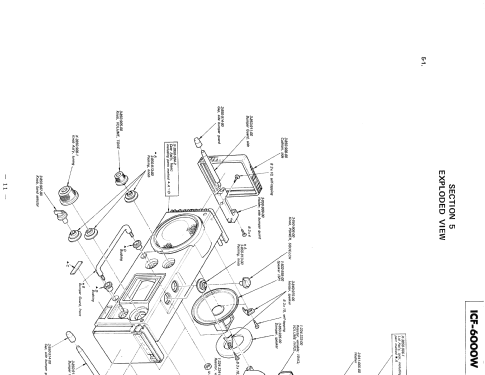

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Batteries / addl. power jack / D: 3 x 1.5 / 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

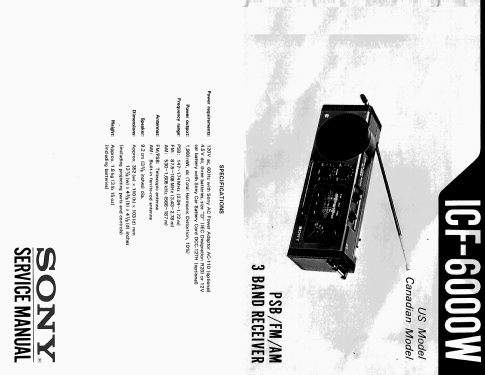

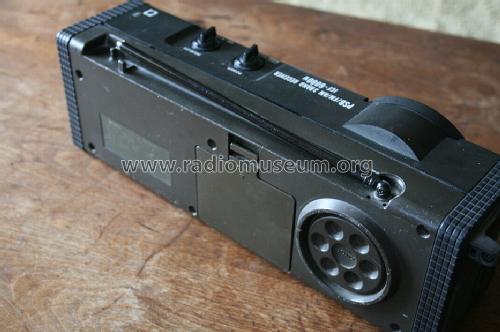

• Model: PSB/FM/AM 3Band Receiver ICF-6000W - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 105 x 100 mm / 13.8 x 4.1 x 3.9 inch

• Notes

• Sony Model ICF-6000W: Portable PSB/FM/AM 3Band Receiver, covering 530 - 1605 kHz AM, 87.5 - 108 MHz and 147 - 174 MHz FM, IF 455 kHz in AM and 10.7 MHz in FM mode.

  AFC, Squelch, Telescopic antenna.

  Uses three D-size batteries or 4.5 Volts external power supply. Caution, the center socket pin is negative, not positive as usual!

• Source of data
• -- Schematic

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
