Radio Cassette-Corder CFS-828S EA Model (Saudi Arabia)

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960701) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960702) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960703) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960704) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960705) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960707) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960708) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960709) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960710) Radio

Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960711) Radio
Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960506) Radio Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960507) Radio
Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960508) Radio
Use red slider bar for more.
Radio Cassette-Corder CFS-828S; Sony Corporation; (ID = 1960506) Radio
Sony Corporation;: Radio Cassette-Corder CFS-828S [Radio] ID = 1960506 1400x759

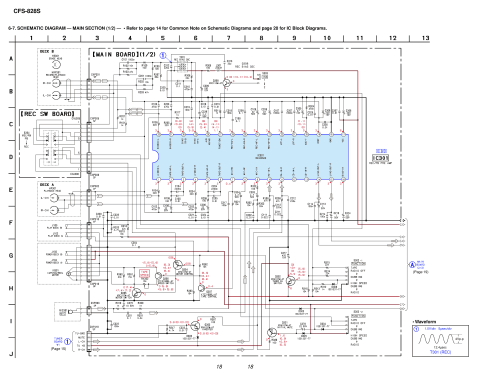

Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Cassette-Corder CFS-828S EA Model (Saudi Arabia), Sony Corporation; Tokyo:

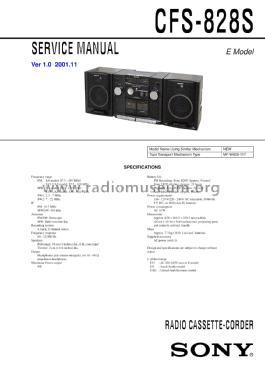

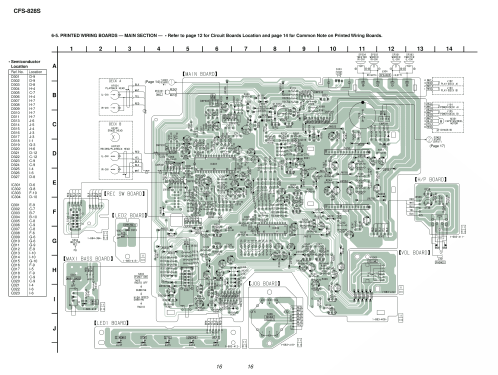

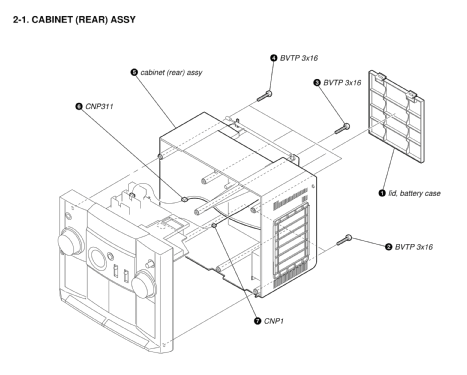

Sony Service Manual

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 2001 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 50/60Hz, 110-120 / 220-240; 6 x 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out 9 W (max.)
from Radiomuseum.org Model: Radio Cassette-Corder CFS-828S [EA Model ] - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 679 x 263.5 x 239.5 mm / 26.7 x 10.4 x 9.4 inch
Notes

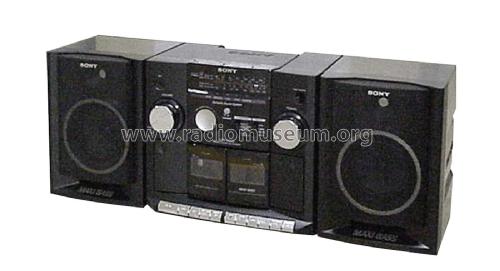

Sony Portable Sound System Model CFS-828S.
Max. Power Output 9 Watts
Frequency Range:
FM 87,5 - 107 MHz
MW 530 - 1605 kHz
SW1 2,3 - 7 MHz
SW2 7 - 22 MHz
Double Cassette Player/Recorder
4-track, 2-channel stereo, 80 - 12500Hz
Tape Transport Mechanism Type: MF-W828-117
Detachable 2-Way Speaker System:
1x FullRange 10cm Cone Type, 6 Ohms
1x Tweeter 2cm
Power Consumption AC 18 Watts

Suffix:
E15:  220-240VAC area in E-Model
EA: Saudi Arabia Model
UAE: United Arab Emirates Model



Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Mentioned in - - Manufacturers Literature (Service Manual)

Model page created by Franz Scharner. See "Data change" for further contributors.
