Radio Cassette-Corder CFS-W308

Radio Cassette-Corder CFS-W308; Sony Corporation; (ID = 1746819) Radio
Use red slider bar for more.
Radio Cassette-Corder CFS-W308; Sony Corporation; (ID = 1746819) Radio
Sony Corporation;: Radio Cassette-Corder CFS-W308 [Radio] ID = 1746819 933x1366
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Cassette-Corder CFS-W308, Sony Corporation; Tokyo:

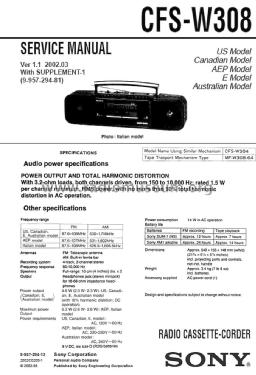

Service Manual

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1998 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Alternating Current supply (AC) / 120 / 6 x 1,5 Volt
Loudspeaker 2 Loudspeakers / Ø 10 cm = 3.9 inch
Power out 5.2 W (unknown quality)
from Radiomuseum.org Model: Radio Cassette-Corder CFS-W308 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 540 x 155 x 148 mm / 21.3 x 6.1 x 5.8 inch
Notes

1Sony Portable AM-FM Stereo Radio Double Cassette Player/Recorder Model CFS-W308.

Telescopic antenna, Carrying Handle

Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Mentioned in - - Manufacturers Literature

Model page created by Franz Scharner. See "Data change" for further contributors.
