Radio Cassette Player WM-FX477

Radio Cassette Player WM-FX477; Sony Corporation; (ID = 2103741) Radio Radio Cassette Player WM-FX477; Sony Corporation; (ID = 2103742) Radio
Radio Cassette Player WM-FX477; Sony Corporation; (ID = 2103743) Radio Radio Cassette Player WM-FX477; Sony Corporation; (ID = 2103744) Radio
Use red slider bar for more.
Radio Cassette Player WM-FX477; Sony Corporation; (ID = 2103741) Radio
Sony Corporation;: Radio Cassette Player WM-FX477 [Radio] ID = 2103741 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radio Cassette Player WM-FX477, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage and/or dry batteries / 2 x 1,5 DC Volt
Loudspeaker - For headphones or amp.
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Radio Cassette Player WM-FX477 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 110 x 80 x 30 mm / 4.3 x 3.1 x 1.2 inch
Notes

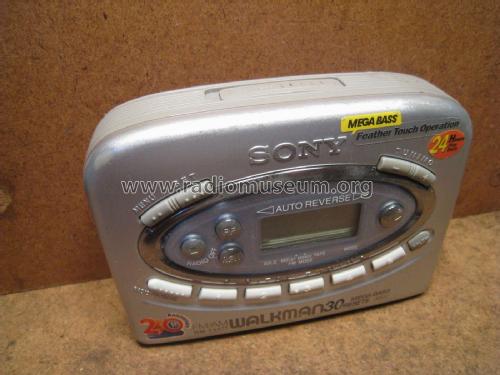

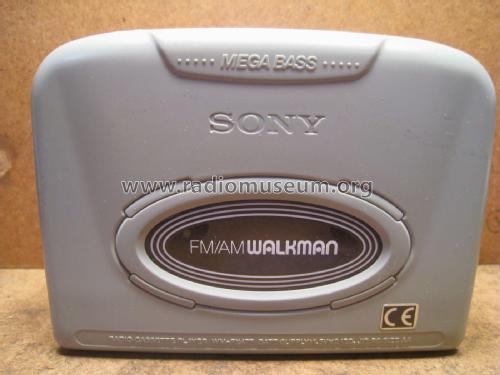

SONY Radio Cassette Player mod. WM-FX477 -  AM/FM Walkman, Mega Bass, feather touch operation, 30 preset, AVLS, 24 hour playback, menu/set/tuning/radio on/band/hold/ preset 1-2-3-4-5 buttons, digital tuning, auto reverse, radio off/ff.ww/rew/play/dir button,  volume control, headphone output, ferrite inside antenna, external power supply connector 3V DC, front display, design for  20th anniversary.

Net weight (2.2 lb = 1 kg) 0.250 kg / 0 lb 8.8 oz (0.551 lb)

Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
