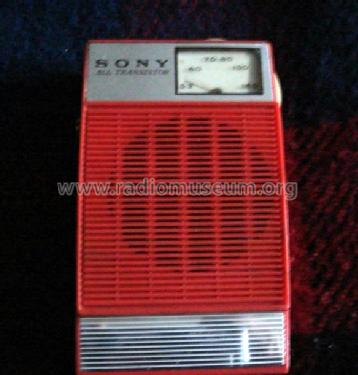

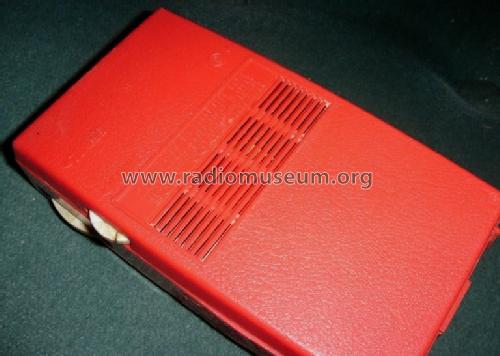

Six Transistor Radio TR-1815

Six Transistor Radio TR-1815; Sony Corporation; (ID = 1684047) Radio
Six Transistor Radio TR-1815; Sony Corporation; (ID = 1329675) Radio Six Transistor Radio TR-1815; Sony Corporation; (ID = 1325570) Radio
Six Transistor Radio TR-1815; Sony Corporation; (ID = 1325565) Radio Six Transistor Radio TR-1815; Sony Corporation; (ID = 1325566) Radio
Six Transistor Radio TR-1815; Sony Corporation; (ID = 1325567) Radio Six Transistor Radio TR-1815; Sony Corporation; (ID = 1325568) Radio
Six Transistor Radio TR-1815; Sony Corporation; (ID = 1325571) Radio Six Transistor Radio TR-1815; Sony Corporation; (ID = 1329676) Radio
Six Transistor Radio TR-1815; Sony Corporation; (ID = 1455564) Radio
Use red slider bar for more.
Six Transistor Radio TR-1815; Sony Corporation; (ID = 1329675) Radio
Sony Corporation;: Six Transistor Radio TR-1815 [Radio] ID = 1329675 627x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Six Transistor Radio TR-1815, Sony Corporation; Tokyo:
Thanks for Első Zalai Rádiómúzeum Alapítvány, First Zala County Radio Museum Foundation.

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SC73 2SC76 2SC76 2SD65 2SD65 2SD65 1T23
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 × 1,5 AA Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch
Power out
from Radiomuseum.org Model: Six Transistor Radio TR-1815 - Sony Corporation; Tokyo
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 65 x 105 x 31 mm / 2.6 x 4.1 x 1.2 inch

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
