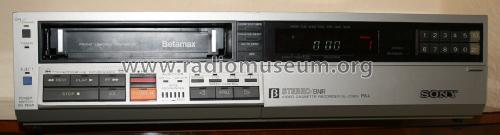

Video Cassette Recorder SL-C9 ES

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1982/1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 133405

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Video-Taperecorder/-Player; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Video Cassette Recorder SL-C9 ES - Sony Corporation; Tokyo

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 105 x 362 mm / 16.9 x 4.1 x 14.3 inch

• Notes
• Sony SL-C9 ES, ß-Beta Stereo PAL Video Cassette Recorder.
  1st A2 (German) stereosystem VTR with built-in stereo UHF modulator!
  CCIR standard electronic VHF-/UHF tuner with 29 presets. IR remote control. Camera front terminal. Power consumption: 35 W.
  Rotary two-head helical scanning.
  Tape speed: 18,73 mm/sec.!

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)
