• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 245026

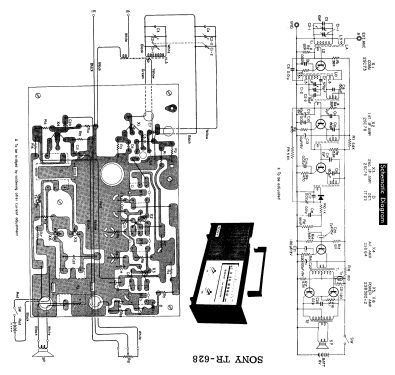

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• 2SC73 2SC76 2SC76 2SD64 2SB382 2SB382 1T23

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / D: 4 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Solid State All Transistor TR-628 [Without tone control] - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 150 x 90 mm / 11.8 x 5.9 x 3.5 inch

• Notes

• Sony Battery Operated Six Transistor AM Radio Model TR-628.
  Tuning Range 530 - 1605 kHz.
  Carrying Handle.

• Net weight (2.2 lb = 1 kg)
• 1.3 kg / 2 lb 13.8 oz (2.863 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
