• Year
  • 1968/1969
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 27511

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 21
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Tape Recorder
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 110; 117; 125; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

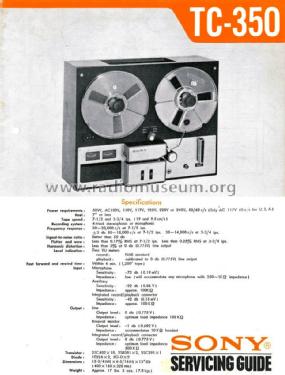

  • Model: TC-350 - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 400 x 160 x 320 mm / 15.7 x 6.3 x 12.6 inch
  • Notes
  • Transistoren: 18× 2SC402, 2× 2SB381, 2SC291.
    Vierspur-Stereo; Bandgeschwindigkeiten: 9,5/19 cm/s; Spulen-Ø 18 cm. Betrieb in senkrechter und waagerechter Lage möglich.
    Vertrieb in D über ELAC.
  • Net weight (2.2 lb = 1 kg)
  • 7.8 kg / 17 lb 2.9 oz (17.181 lb)
  • External source of data
  • erb
