• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1974 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 175345

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 2 Loudspeakers / Ø 20 cm = 7.9 inch

• Power out
• 35 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

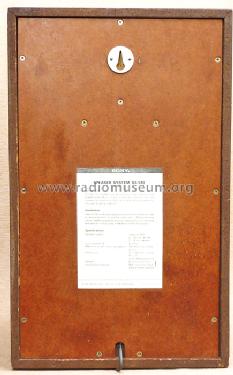

• Model: Speaker System SS-510 - Sony Corporation; Tokyo

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 270 x 440 x 240 mm / 10.6 x 17.3 x 9.4 inch

• Notes
• Speaker System: 2-way system, 20cm woofer, 5cm tweeter
  Input inpedance: 8 Ohm
  Supplied accessories: Wall mounting hardware and felt spacers
  Maximum power handling capacity: 35 watts(full-range music).

• Net weight (2.2 lb = 1 kg)
• 5.3 kg / 11 lb 10.8 oz (11.674 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Rudolf Osterkamp. See "Data change" for further contributors.
