Speaker System SS-R550

Speaker System SS-R550; Sony Corporation; (ID = 2625853) Speaker-P
Speaker System SS-R550; Sony Corporation; (ID = 2625839) Speaker-P Speaker System SS-R550; Sony Corporation; (ID = 2625840) Speaker-P
Speaker System SS-R550; Sony Corporation; (ID = 2625841) Speaker-P Speaker System SS-R550; Sony Corporation; (ID = 2625842) Speaker-P
Speaker System SS-R550; Sony Corporation; (ID = 2625843) Speaker-P Speaker System SS-R550; Sony Corporation; (ID = 2625844) Speaker-P
Speaker System SS-R550; Sony Corporation; (ID = 2625845) Speaker-P Speaker System SS-R550; Sony Corporation; (ID = 2625846) Speaker-P
Speaker System SS-R550; Sony Corporation; (ID = 2625854) Speaker-P
Use red slider bar for more.
Speaker System SS-R550; Sony Corporation; (ID = 2625839) Speaker-P
Sony Corporation;: Speaker System SS-R550 [Speaker-P] ID = 2625839 1400x2015
Select picture or schematic to display from thumbnails on the right and click for download.
For model Speaker System SS-R550, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1999 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Speaker System SS-R550 - Sony Corporation; Tokyo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 220 x 340 x 280 mm / 8.7 x 13.4 x 11 inch
Notes

Loudspeakers for the Sony MHC-RXDS/R550 Mini Hi-fi Component System (European model).

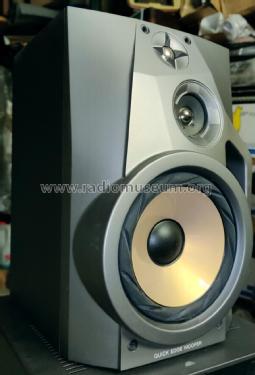

Speaker system  3-way, 3-unit, bass-reflex type
Speaker units
Woofer:              17 cm, cone type
Tweeter:              5 cm, cone type
Super Tweeter:    2 cm, dome type
Nominal impedance   6 ohms

Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Mentioned in -- Original-techn. papers.

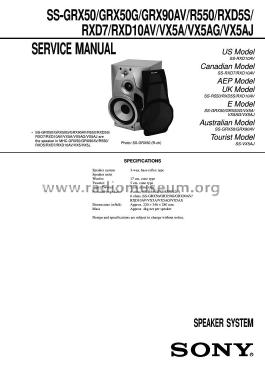

Literature/Schematics (1) - - Manufacturers Literature (Operating instructions Service manual MHC-RXDS/R550 dated 1999)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
