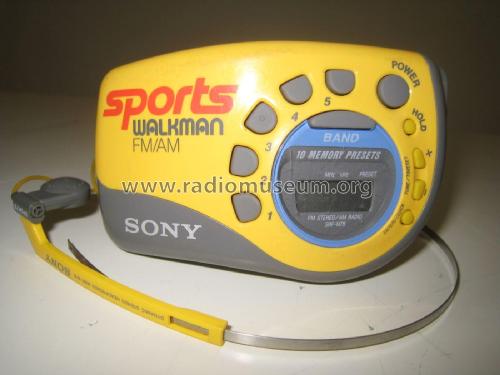

Sports FM/AM Walkman SRF-M78
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1996
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 198647
eBay-Artikelnr.:195452599246

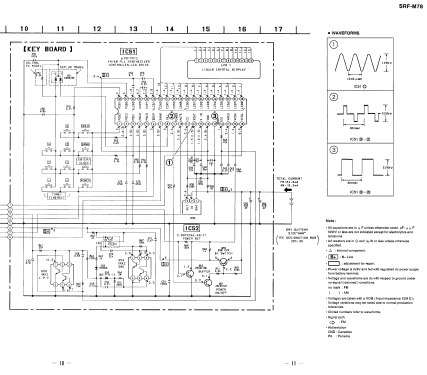

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 2 x 1.5 Volt
- Loudspeaker
- - only for Earphone!
- Power out
- 0.03 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sports FM/AM Walkman SRF-M78 - Sony Corporation; Tokyo
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 105 x 68 x 38.6 mm / 4.1 x 2.7 x 1.5 inch
- Notes
- FM Stereo / AM PLL Synthesizet Radio,
Up to 10 stations (5 for each band FM or AM) can be stored for button-touch tuning - memory present tuning,
Easy attachable wraparound arm band, Water-resistent for all-weather use, Clock.
- Author
- Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
