• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1978

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 146088

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

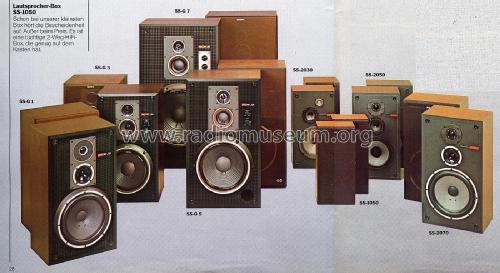

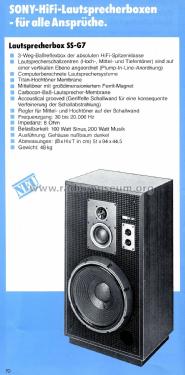

• Model: SS-G7 - Sony Corporation; Tokyo

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 510 x 940 x 445 mm / 20.1 x 37 x 17.5 inch

• Notes
• 3-Weg HiFi-Box, 100 Watt Sinus an 8 Ohm, 30-20.000 Hz, Volumen 128 Liter.
  380mm Konus-TT, 100mm Konus-MT, 35mm Konus-HT. Frequenzweiche Übergänge bei 550/4.500 Hz.

• Net weight (2.2 lb = 1 kg)
• 48 kg / 105 lb 11.6 oz (105.727 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
