FM Stereo / FM-AM Tuner ST-80F

FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 631822) Radio

FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 631823) Radio
FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 2035823) Radio FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 2035822) Radio
FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 2035824) Radio FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 2035825) Radio
FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 452060) Radio FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 215171) Radio
FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 215172) Radio FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 452059) Radio
FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 452061) Radio FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 452062) Radio
Use red slider bar for more.
FM Stereo / FM-AM Tuner ST-80F; Sony Corporation; (ID = 2035823) Radio
Sony Corporation;: FM Stereo / FM-AM Tuner ST-80F [Radio] ID = 2035823 1193x1469
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Stereo / FM-AM Tuner ST-80F, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 20:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 117; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: FM Stereo / FM-AM Tuner ST-80F - Sony Corporation; Tokyo
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 5 x 9.125 x 7.5 inch / 127 x 232 x 191 mm
Notes

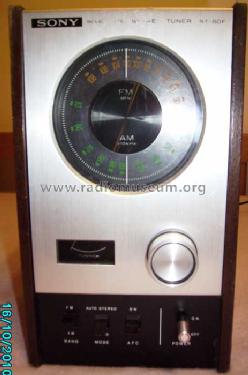

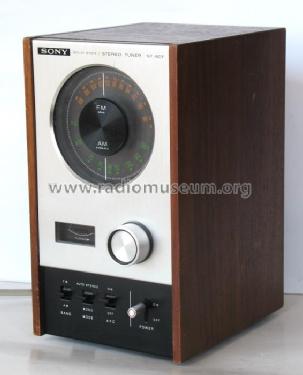

A hi-fi AM/FM stereo solid-state tuner with a circular analogue dial, housed in a compact wooden cabinet with real teak panels. With a tuning meter, rotary tuning control, stereo indicator lamp, push button switches for Band (AM, FM), mode selector (Auto Stereo, Mono) and AFC (On, Off). On the back, an AM ferrite bar antenna adjustable through a slot in the case, terminals for Ground, AM and FM antennae and RCA phono sockets for low and high line output.

Specification
FM Tuner Section
Tuning range87-108MHz
Sensitivity  2.4µV (S/N=30dB)
S/N ratio65dB
Capture ratio2dB
Selectivity50dB (IHF)
Image rejection50dB
IF rejection90dB
Spurious signal rejection80dB
AM suppression50dB
Frequency response30Hz-15kHz +0dB,-2dB
Antenna requirements300Ω balanced
Harmonic distortionMono: 0.5% IHF, Stereo: 0.8% IHF
FM stereo separationBetter than 36dB at 1,000Hz
Audio outputs
(at 400Hz, 100% modulation)
High level : 2V, 10kΩ
Low level : 700mV, 10kΩ
AM Tuner Section
Tuning range530-1,605kHz
Sensitivity48dB/m, built-in antenna
10µV, external antenna
S/N ratio45dB at 5mV
Image rejection56dB at 1,000kHz
IF rejection 36dB at 1,000kHz
Harmonic distortion0.8% at 5mV
AntennaBuilt-in ferrite bar antenna and
external antenna terminal

Versions/Power requirements
USA, Canada model  /  117V AC 60Hz
Europe model           /  100, 117, 220, 240V AC 50/60Hz switchable internally

Power consumption:  13 W

Semiconductors: 2 FETs, 18 Transistors (14 in receiver, 4 auxiliary), 16 diodes

See also the similar Sony ST-80W FM Stereo / FM-AM Tuner

Similar in design to the Telefunken hifi compact 2000.

Net weight (2.2 lb = 1 kg) 5 lb 8 oz (5.5 lb) / 2.497 kg
Price in first year of sale 468.00 DM
Source of data - - Data from my own collection
Mentioned in -- Original prospect or advert (1971 Sony Gesamtprogramm katalog)

Model page created by Emile Stauber. See "Data change" for further contributors.
