Stereo Cassette Corder CFS-88S

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1982 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 226888

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, 2 Short Wave plus FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 110; 120; 220; 240 / 10 × 1,5 / 12 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Cassette Corder CFS-88S - Sony Corporation; Tokyo
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 460 x 250 x 240 mm / 18.1 x 9.8 x 9.4 inch
  • Notes

  • Two 2-way speakers mounted on hinges are folded out for use or cover the front for transport. Speakers can be detached.

    Wave bands: FM / MW / SW1 / SW2.

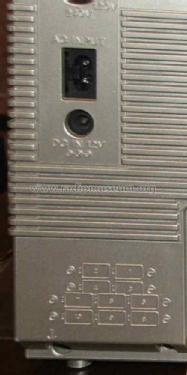

    Ext. power jack DC 12 V; connectors for headphones.

  • Net weight (2.2 lb = 1 kg)
  • 9.6 kg / 21 lb 2.3 oz (21.145 lb)
