• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1985 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 191354

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 2 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

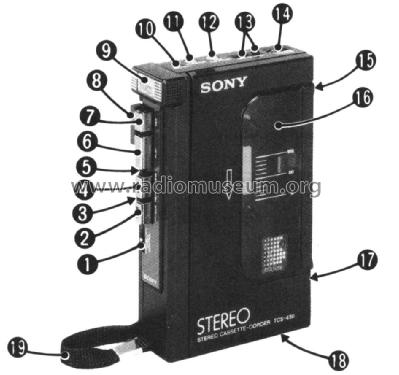

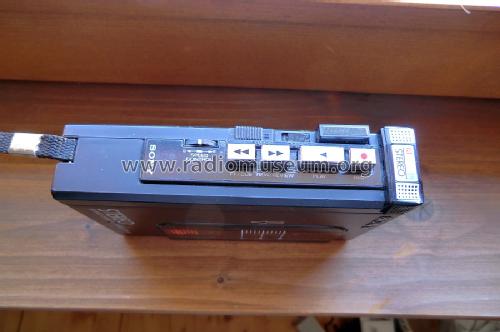

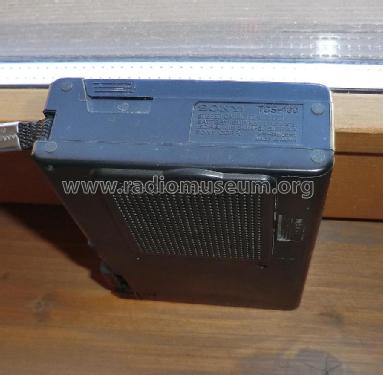

• Model: Stereo Cassette-Corder TCS-430 - Sony Corporation; Tokyo

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 85 x 130 x 30 mm / 3.3 x 5.1 x 1.2 inch

• Notes
• Stereo built-in microphone, speed control, red LED for rec/batt, tape counter, possibility of external power source 3 V.

• Net weight (2.2 lb = 1 kg)
• 0.260 kg / 0 lb 9.2 oz (0.573 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Felice Nicolini. See "Data change" for further contributors.
