Stereo Cassette Deck TC-209SD

Sony Corporation; Tokyo

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Sony Corporation; Tokyo

Year
1975/1976

Category
Sound/Video Recorder and/or Player

Radiomuseum.org ID
159838

Schematics

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713962) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713963) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713964) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713965) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

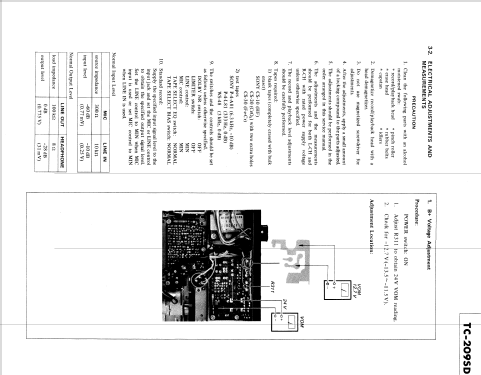

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713966) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713967) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713968) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713969) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713970) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

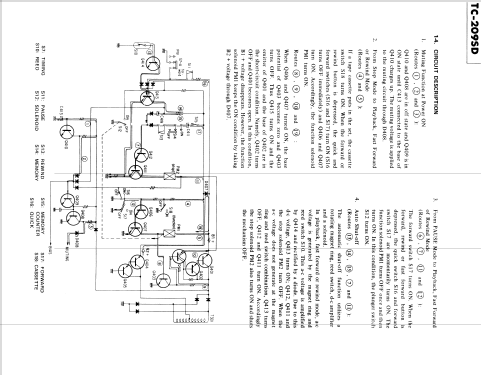

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713972) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713973) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

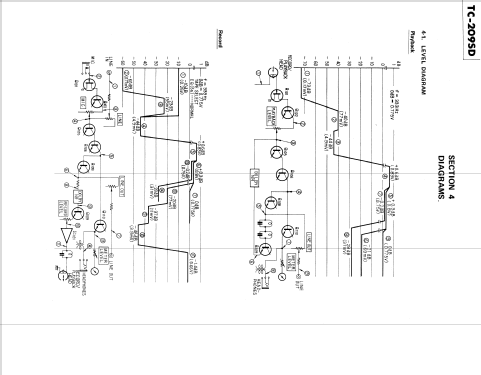

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713974) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713975) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713976) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713977) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713978) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713979) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713980) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713981) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713982) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713984) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713985) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713988) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713990) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713991) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713995) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713997) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1713999) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1714000) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1714002) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (3)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1667105) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1477812) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1667106) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1667107) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1667108) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1667109) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

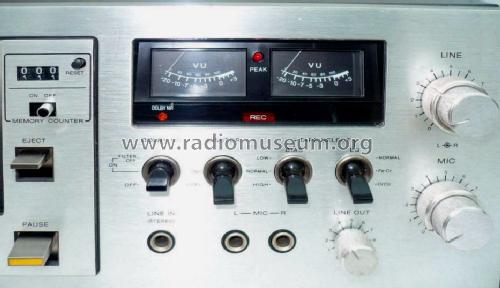

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1667110) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1667111) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 1667112) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)

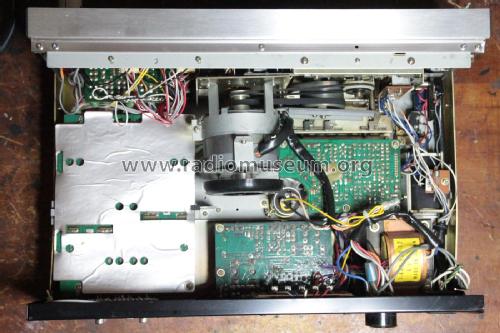

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 2322457) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (1)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 2405029) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (1)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 2405030) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (1)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 2405031) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (1)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 2405032) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (1)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 2405033) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (1)

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 2804957) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)
Sony Print Ad 1976

Stereo Cassette Deck TC-209SD; Sony Corporation; (ID = 2844816) R-Player — Sony Corporation; Stereo Cassette Deck TC-209SD (2)
Sony Service Manual

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
Semiconductors present.

Semiconductors

Main principle
Audio-Amplification

Wave bands
- without

Details
Cassette-Recorder or -Player

Power type and voltage
Alternating Current supply (AC) / 110-220 Volt

Loudspeaker
- For headphones or amp.

Material
Metal case

from Radiomuseum.org
Model: Stereo Cassette Deck TC-209SD - Sony Corporation; Tokyo

Shape
Book-shelf unit.

Dimensions (WHD)
430 x 170 x 320 mm / 16.9 x 6.7 x 12.6 inch

Notes
Sistema di registrazione: quattro piste, due canali stereo.
Velocità di trascinamento del nastro: 4,76 cm/s.
Dolby B sistema.

Type: 2-head, single compact cassette deck
Track System: 4-track, 2-channel stereo
Tape Speed: 4.8 cm/s
Heads: 1 x record/playback, 1 x erase
Motor: AC synchronous
Tape Type: type I, CrO2, FeCr
Noise Reduction: B

Frequency Response:
DOLBY NR OFF
30Hz to 16kHz (Cr02 tape) (DIN)
with regular cassette 20-13kHz (DIN)

Signal to Noise Ratio:
DOLBY NR OFF
with Ferri-Chrome Cassette 61dB at peak level (NAB) 53dB (DIN)
with Chromium Dioxide cassette 57dB at peak level (NAB) 48dB (DIN)
with regular cassette 55dB at peak level (NAB) 46dB (DIN)
DOLBY NR ON
Improved 5dB at 1kHz, 10dB above 5kHz

Wow and Flutter: 0.07% +/-0.18% (DIN)

Total Harmonic Distortion: 1.7%

Record BIAS Frequency: 105kHz

Input: 60mV (line), 0.2mV (mic)

Output: 0.775V (line)

Net weight (2.2 lb = 1 kg)
12 kg / 26 lb 6.9 oz (26.432 lb)

Mentioned in
Funk-Technik (FT) (16/1975, S. 525 / Neuvorstellung)
