• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1973

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 158378

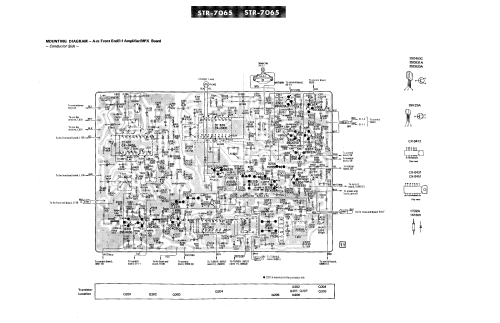

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 64

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 50 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Receiver STR-7065 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 440 x 148 x 354 mm / 17.3 x 5.8 x 13.9 inch

• Notes
• Verstärker Sinusleistung DIN:
  2× 70 Watt/8 Ω, 2× 80 Watt/4 Ω;
  IHF: 2× 50 Watt/8 Ω,
  Bandbreite: 15-30000 kHz;
  Eingangsempfindlichkeit:
  Phono 1+2: 1,4 µV/47 kΩ; Aux 1+2, Tape: 140 µV/100 kΩ; Center Kanal: 5 V/1 kΩ.

• Net weight (2.2 lb = 1 kg)
• 13.5 kg / 29 lb 11.8 oz (29.736 lb)

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (MHF-103 (Modular Hi Fi series, 1977))

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
