Stereo Turntable System PS-LX500

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1983 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 248396

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Turntable System PS-LX500 - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 430 x 95 x 365 mm / 16.9 x 3.7 x 14.4 inch
  • Notes

  • Sony Linear Tracking Direct-Drive Stereo Turntable Model PS-LX500
    Platter: 300mm aluminium alloy die-cast
    Motor: linear torque BSL motor, Drive method: direct drive
    Control system: FG servo control, Speeds: 33 and 45rpm
    Wow and flutter: 0.035% WRMS
    Signal to noise ratio: 75dB
    Automatic system:
    Lead-in, return, reject, repeat, arm up/down, record size
    Tonearm: linear tracking, Effective length: 75mm
    Cartridge: Moving Magnet Type Sony XL-250G
    10 - 20000Hz
    Power Consumpton 10 Watts.
    Power Requirements:
    Type 1: 220VAC
    Type 2: 240VAC
    Type 3: 110-120VAC or 220-240VAC adjustable 50/60Hz

    Stylus: Sony ND-250G
    Optional Remote Controller: System Remote Commander RM-44C.



  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in

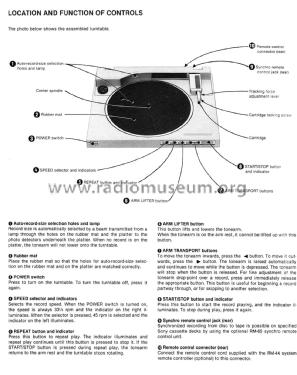

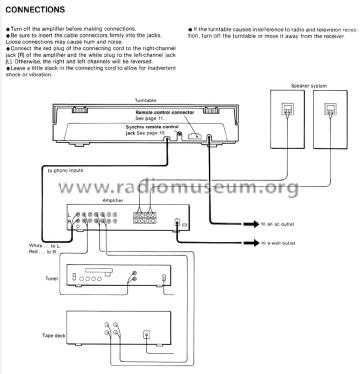

  • - - Manufacturers Literature (Operating Instructions)
  • Author
  • Model page created by Andreas Schulz. See "Data change" for further contributors.
