Stereo Amplifier 3200F TA-3200F

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1970–1976
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 157897

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 31
  • Semiconductors
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 100; 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 220 W (260 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Stereo Amplifier 3200F TA-3200F - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 400 x 149 x 323 mm / 15.7 x 5.9 x 12.7 inch
  • Notes

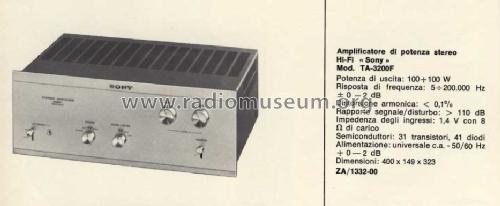

  • A stereo hi-fi power amplifier housed in a metal case (wooden case optional) with continuous power output of 110 watts RMS per channel both channels driven into 8 ohms. With rotary Left and Right channel Level controls, rotary switches for Speakers (Main, Remote, Both, Off) and Power Limiter (Full, ½, ¼), switch for Function (input 1, 2),  RCA phono sockets for input from 2 preamplifiers, a Normal/Test switch, terminals for 2 pairs of loudspeakers (main, remote) and 2 AC outlets, 1 switched and 1 unswitched (total 300W).

    Specification
    Rated RMS power output
    both channels driven    		 130W per channel into 4Ω
    110W per channel into 8Ω
    Dynamic power output (IHF) 500W both channels into 4Ω
    320W both channels into 8Ω
    Power bandwidth 5Hz-35kHz 8Ω (IHF)
    Harmonic distortion < 0.1% at rated output
    < 0.03% at 1 watt output
    IM distortion < 0.1% at rated output
    < 0.03% at 1 watt output
    Frequency response 5Hz-200kHz at 1 watt output
    S/N ratio > 110dB (short-circuited)
    Input Sensitivity/Impedance 1.4 volts for rated output/75kΩ
    Outputs Accepts 4-16Ω speakers

    Versions/power requirements
    US model  / 120 volts AC 50/60Hz
    Canada model  / 117 volts AC 60Hz
    General Export Model 100, 117, 220 or 240 volts AC 50/60Hz

    Power consumption:
    280 watts (USA Model), 390 watts (Export model), 380 VA (Canada Model)

    Stereo Verstärker
    Sinusleisung (IHF) 2 x 110 Watt Sinus 8 Ohm
    Sinusleistung Din: 2 x 130 W/4 Ohm
    Klirrfaktor: < 0.1% (100W/Kanal)
    Stromverbrauch: 340W (max)

  • Net weight (2.2 lb = 1 kg)
  • 14 kg / 30 lb 13.4 oz (30.837 lb)
  • Price in first year of sale
  • 1,298.00 DM
  • Literature/Schematics (1)
  • -- Original prospect or advert (1976 Sony HiFi-Stereo-/Quadro-Gerate katalog)
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Service Manual TA-3200F dated 1970)
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
