• Country
• Chile

• Manufacturer / Brand
• Sony Chile (Cantolla), Arica

• Year
• 1972 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 116076

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 29

• Semiconductors
• 2SK23 2SC710 2SC403 2SC634 2SC631 2SC632 2SA678 2SC633 2SD291 1T243 1T23 1T22 10D-2

• Main principle
• Superheterodyne (common); ZF/IF 10700/455 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

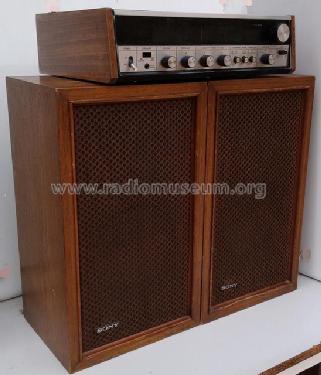

• Model: FM Stereo / FM-AM Receiver STR-230A - Sony Chile Cantolla, Arica

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 16.5 x 4.5 x 12.5 inch / 419 x 114 x 318 mm

• Notes

• FM STEREO/FM-AM RECEIVER. 2 Cajas de Parlantes, Mod. SS-610, c/u: 1 woofer 8"; 1 rango medio 4"; 1 tweeter 2". Impedancia 8 ohms. Fabricado por CANTOLLA Y CIA S.A.C.I. ARICA (CHILE). Bajo licencia de SONY CORPORATION, JAPON.

  Solid state devices listed once per type.

  See also 50/60Hz 100-120-220-240 volt version STR-230A.

• Net weight (2.2 lb = 1 kg)
• 13 lb 14 oz (13.875 lb) / 6.299 kg

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Jorge Cifuentes. See "Data change" for further contributors.

• Other Models

• Here you find 2 models, 0 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sony Chile (Cantolla), Arica
