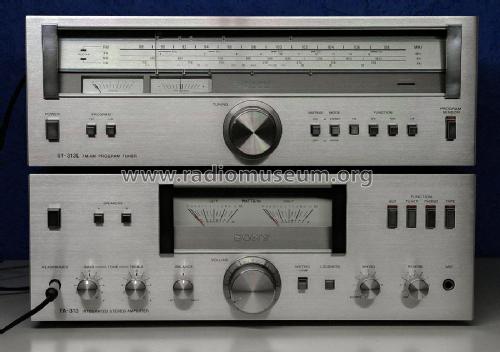

STR-313L

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1978

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146077

• Picture

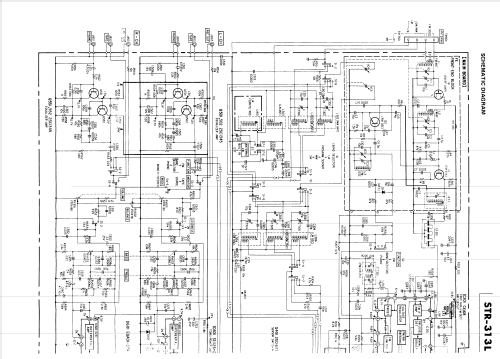

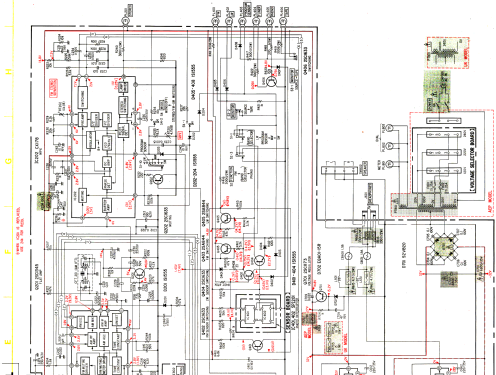

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 16

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 54 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: STR-313L - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 410 x 145 x 310 mm / 16.1 x 5.7 x 12.2 inch

• Notes
• ICs: 5
  4-Band-Stereo-Receiver mit 2× 27 Watt (Sinus) an 8 Ohm. Leistungsbandbreite 10–40000 Hz.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
