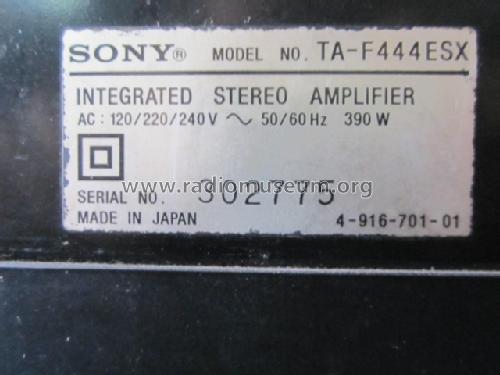

Integrated Stereo Amplifier 444ESX TA-F444ESX

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1987 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 170620

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 120; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 220 W (290 W max.)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Integrated Stereo Amplifier 444ESX TA-F444ESX - Sony Corporation; Tokyo
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 160 x 436 mm / 16.9 x 6.3 x 17.2 inch
  • Notes

  • A hi-fi stereo integrated amplifier with power output of 110 watts RMS per channel into 8 ohms, or 145 watts RMS per channel into 4 ohms.

    Version/Power requirement
    E / 120, 220, 240V AC 50/60Hz with voltage selector

    Power consumption:  390 Watts

    Same as the Sony TA-F700ES Integrated Stereo Amplifier F700ES (different markets). See also the Sony TA-F444ES Integrated Stereo Amplifier and the Sony TA-F444ESII Integrated Stereo Amplifier.

    Transistor types: 2SC2837 2SC3514 2SA1186 2SC2275 2SA1383 2SA985 2SK246.

  • Net weight (2.2 lb = 1 kg)
  • 18.3 kg / 40 lb 4.9 oz (40.308 lb)
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service manual TA-F444ESX TA-F700ES dated 1987.5)
  • Author
  • Model page created by Abu Bakar. See "Data change" for further contributors.
