Integrated Stereo Amplifier TA-F55

• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1979/1980

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 156536

• Picture

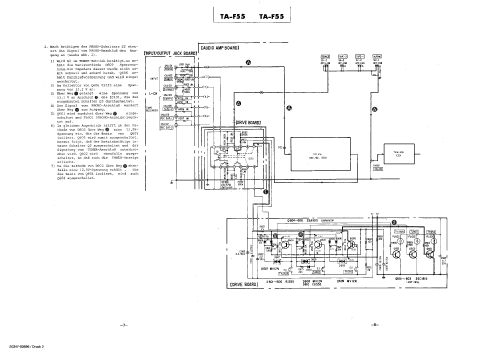

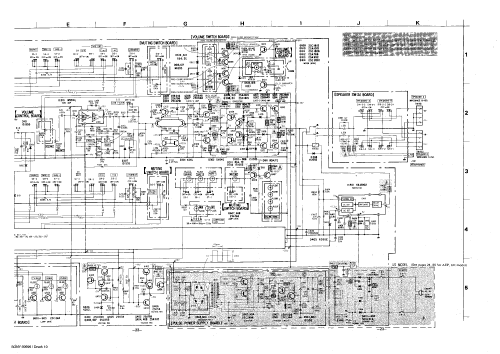

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 200 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Integrated Stereo Amplifier TA-F55 - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 80 x 310 mm / 16.9 x 3.1 x 12.2 inch

• Notes
• Integrated Stereo Amplifier (C-4869-701-1) mit 2 x 100 Watt Sinus; 2 Lautsprechergruppen schaltbar (A/B); 8-16 Ohm (Schraubanschlüsse), Anzeige der Ausgangsleistung über LED-Anzeigen. Kopfhöreranschluss: 6,3mm Klinkenbuchse; Eingänge: Phono (MM/MC)/ Tuner/ TV-Aux/ Tape1/ Tape2; Filter: Low-15Hz/ Loudness schaltbar, Muting Taste -20db, Tape Copy Funktion. max. Netzstromaufnahme bei 220Volt 280Watt

• Net weight (2.2 lb = 1 kg)
• 4.7 kg / 10 lb 5.6 oz (10.352 lb)

• Price in first year of sale
• 59,800.00 JPY

• Mentioned in
• Funkschau (22/1980, S. 56 / HiFi 80 in Düsseldorf)

• Author
• Model page created by Museum Roggenhofer. See "Data change" for further contributors.
