Tapecorder (Tape recorder) EM-3
Sony Corporation; Tokyo
- Country
- Japan
- Manufacturer / Brand
- Sony Corporation; Tokyo
- Year
- 1972 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 290885

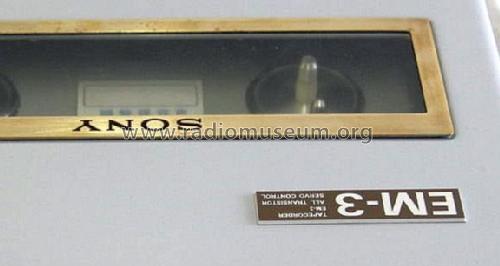

EM-3 is a very rare professional recorder

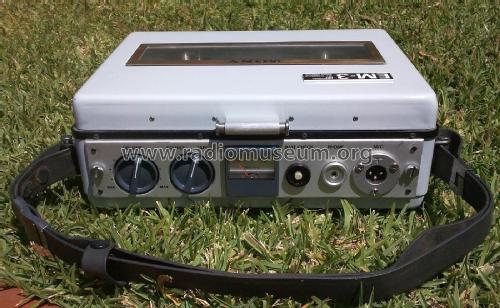

EM-3 is a very rare Sony recorder

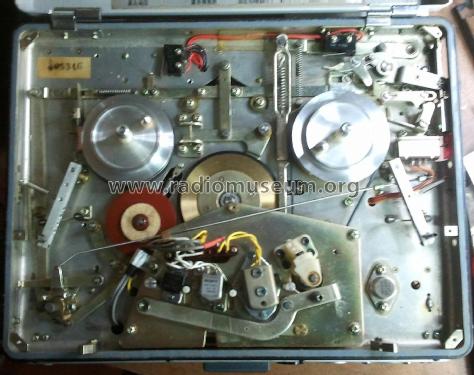

Mechanical parts
Under bottom photo
This is one the four main printed circuits
Cover (lid) of recorder
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Batteries / addl. power jack / D: 8 x 1.5 / 12 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Tapecorder EM-3 - Sony Corporation; Tokyo
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 320 x 240 x 120 mm / 12.6 x 9.4 x 4.7 inch
- Notes
-
Sony Tapecorder EM-3 is a portable self-contained tape recorder for professional use.
Application: Reporter
Type: Monophonic reel to reel recorder/player
Reels: 5” diameter
Tape: ¼” wide
Tape speed: 9,53 cm/s
Heads: 3, full track, Erase, Record, Playback
Input: Microphone by XLR connector
Output: Headphone (3.5 mm jack mono)Monitor:
audio – headphone (tape/source)VU meter: range -10 dB to +3 dB / battery voltage check
Power supply:
Dry cells 8 x 1.5 V type D batteries or 12 V DC input
Weight: 3.6 kg without batteries
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Author
- Model page created by Moisés Piedade. See "Data change" for further contributors.
