• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 274949

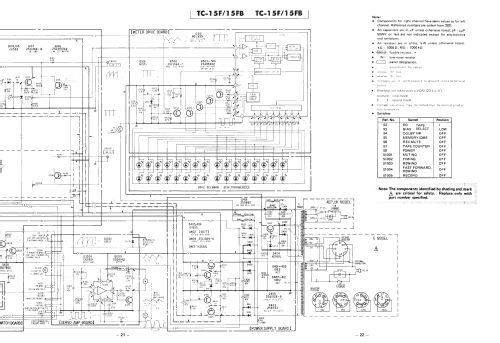

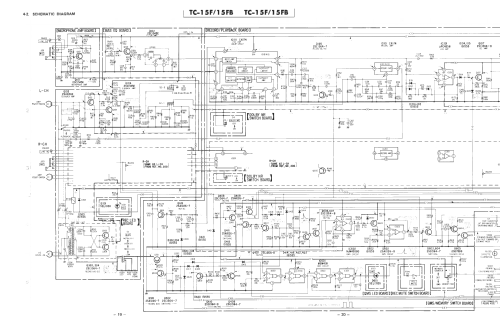

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Tapecorder TC-15F - Sony Corporation; Tokyo

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 430 x 130 x 165 mm / 16.9 x 5.1 x 6.5 inch

• Notes

• Sony Frontloading Stereo Cassette Tape Deck Model TC-15F.
  4-track, 2-channel stereo
  Bias Frequency 105kHz
  Dolby NR
  3-Digit analog Tape Counter
  Metal Tape Capability (20-17000Hz)
  Power Consumption max. 12 Watts

  Power Requirements:
  AEP Model - 220VC 50/60Hz
  UK Model - 240VAC 50/60Hz
  E Model - 110, 120, 220 or 240VAC adjustable, 50/60Hz (Weight: 4,9kg)





• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Mentioned in
• - - Manufacturers Literature (Service Manual)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
