TC153SD

TC153SD; Sony Corporation; (ID = 2467368) R-Player

TC153SD; Sony Corporation; (ID = 2467369) R-Player

TC153SD; Sony Corporation; (ID = 2467370) R-Player

TC153SD; Sony Corporation; (ID = 2467371) R-Player

TC153SD; Sony Corporation; (ID = 2467372) R-Player

TC153SD; Sony Corporation; (ID = 2467373) R-Player

TC153SD; Sony Corporation; (ID = 2467374) R-Player

TC153SD; Sony Corporation; (ID = 2467375) R-Player

TC153SD; Sony Corporation; (ID = 2467376) R-Player

TC153SD; Sony Corporation; (ID = 2467377) R-Player
TC153SD; Sony Corporation; (ID = 231650) R-Player TC153SD; Sony Corporation; (ID = 565784) R-Player
TC153SD; Sony Corporation; (ID = 231651) R-Player TC153SD; Sony Corporation; (ID = 468519) R-Player
TC153SD; Sony Corporation; (ID = 468520) R-Player TC153SD; Sony Corporation; (ID = 2081901) R-Player
TC153SD; Sony Corporation; (ID = 2081903) R-Player TC153SD; Sony Corporation; (ID = 2081905) R-Player
TC153SD; Sony Corporation; (ID = 2081907) R-Player TC153SD; Sony Corporation; (ID = 2081908) R-Player
Use red slider bar for more.

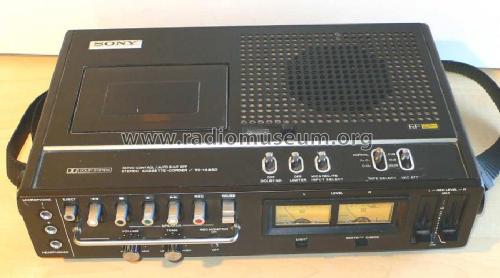

TC153SD; Sony Corporation; (ID = 231650) R-Player
Sony Corporation;: TC153SD [R-Player] ID = 231650 933x519
Select picture or schematic to display from thumbnails on the right and click for download.
For model TC153SD, Sony Corporation; Tokyo

Country:  Japan
Manufacturer / Brand:  Sony Corporation; Tokyo
Year: 1975 Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / (4 × 1,5) Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 9.5 cm = 3.7 inch
Power out
from Radiomuseum.org Model: TC153SD - Sony Corporation; Tokyo
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 382 x 240 x 106 mm / 15 x 9.4 x 4.2 inch
Notes Stereo Wiedergabe.
Net weight (2.2 lb = 1 kg) 5.2 kg / 11 lb 7.3 oz (11.454 lb)
Price in first year of sale 9'300.00 öS
Source of data - - Data from my own collection
Mentioned in (A) Radio Elektronik Schau; Heft 11, 1975 Ausführliche Gerätevorstellung

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Sony Corporation; Tokyo
Here you find 3557 models, 3410 with images and 753 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
