• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1968 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 159318

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage and/or dry batteries / 10.5-16 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

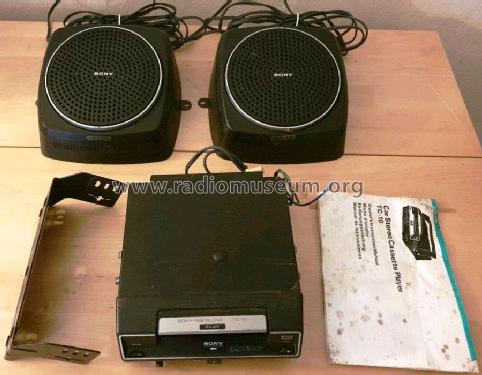

• Model: TC-10 - Sony Corporation; Tokyo

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 168 x 73 x 210 mm / 6.6 x 2.9 x 8.3 inch

• Notes
• Riproduttore a cassetta stereo
  Velocita` di trascinamento: 4,75 cm/s
  7 diodi,1 termistore

• Literature/Schematics (1)
• Selezione Radio-TV Dicembre 1972

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
