TC-135 SD

Sony Corporation; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1975/1976
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 108091

 Technical Specifications

  • Number of Transistors
  • 18
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage

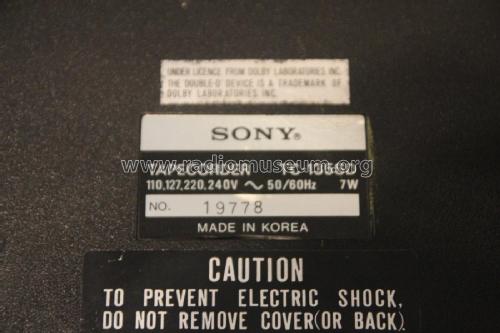

  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: TC-135 SD - Sony Corporation; Tokyo
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 390 x 110 x 250 mm / 15.4 x 4.3 x 9.8 inch
  • Notes

  • Dolby NR (Typ "B"); Mikrofon- und Phonoeingänge; Chinch- und Kopfhörerausgang (8 Ohm), zusätzlich DIN-Buchse.

    Type: 2-head, single compact cassette deck
    Track System: 4-track, 2-channel stereo
    Tape Speed: 4.75 cm/s
    Heads: 1 x record/playback, 1 x erase
    Motor: DC servomotor
    Tape Type: type I, CrO2, FeCr
    Noise Reduction: B
    Frequency Response: 30Hz to 15kHz  (Cr02 tape)
    Signal to Noise Ratio: 58dB  (dolby B)
    Wow and Flutter: 0.2%
    Total Harmonic Distortion: 1.7%
    Input: 60mV (line), 0.2mV (mic)
    Output: 0.435V (line)

  • Net weight (2.2 lb = 1 kg)
  • 3.6 kg / 7 lb 14.9 oz (7.93 lb)
  • Source of data
  • - - Data from my own collection
  • Mentioned in
  • -- Original-techn. papers.
