• Country
• Japan

• Manufacturer / Brand
• Sony Corporation; Tokyo

• Year
• 1976 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 114712

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 0.7 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

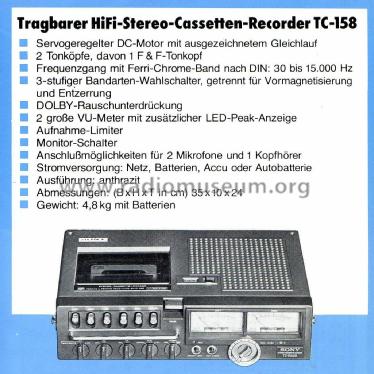

• Model: TC-158SD - Sony Corporation; Tokyo

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 350 x 240 x 100 mm / 13.8 x 9.4 x 3.9 inch

• Net weight (2.2 lb = 1 kg)
• 4.8 kg / 10 lb 9.2 oz (10.573 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Ernst Rykkje. See "Data change" for further contributors.
